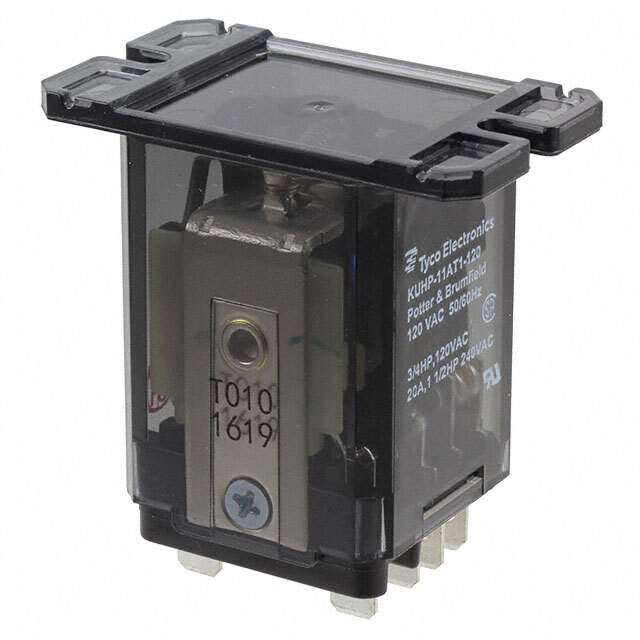

KUHP-11AT1-120 Real Image
Same model may have multiple batches, images only for reference.

KUHP-11AT1-120

Part No KUHP-11AT1-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 20A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUHP
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 20 A
Switching Voltage 240VAC - Max
Coil Current 24 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -45°C ~ 45°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 1.7 kOhms
Base Product Number KUHP-11
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names KUHP11AT1120,PB621,6-1393114-5,PB621-NDR,-KUHP-11AT1-120-SI
Standard Package 25
Win Source Part Number 1206035-KUHP-11AT1-120
Ultra Librarian 3D Model Ultra Librarian KUHP-11AT1-120 CAD Model

Description

The KUHP-11AT1-120 is a DPDT (2 Form C) power relay with a coil voltage of 120VAC.

  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Maximum Switching Voltage: 240VAC
  • Contact Rating (Current): 20A
  • Operating Temperature: -45°C to 45°C
  • Termination Style: Quick Connect 0.250" (6.3mm)
  • Coil Resistance: 1.7 kOhms
  • Coil Current: 24mA
  • Operate and Release Time: 20ms
  • Seal Rating: Unspecified
  • RoHS: Non-Compliant
