Same model may have multiple batches, images only for reference.

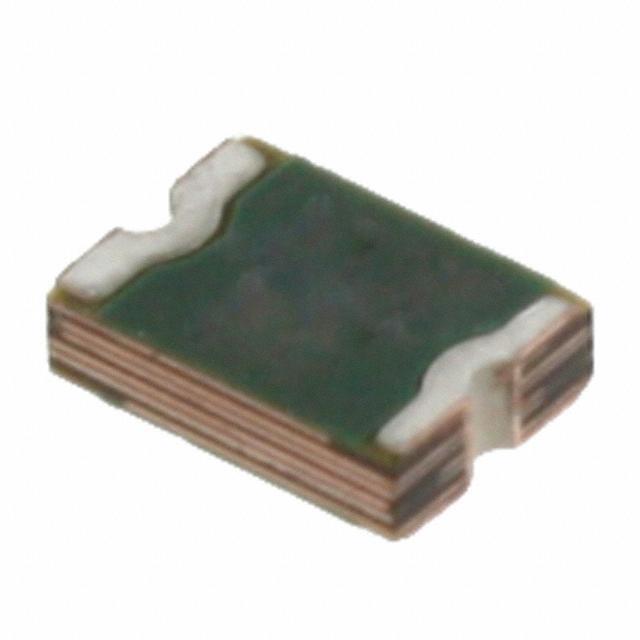

MINISMDC260F/16-2 TE Connectivity
Same model may have multiple batches, images only for reference.

MINISMDC260F/16-2

Part No MINISMDC260F/16-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 3.0A HOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
No 655203
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 2.6A
Current - Trip (It) 5A
R Min/Max 0.015 ~ 0.050 Ohm
Time to Trip 5s
Package 1812 (4532 Metric) Concave
Catalog PolySwitch Surface Mount
Win Source Part Number 037273-MINISMDC260F/16-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MINISMDC260F/16-2 CAD Model

Description

The MINISMDC260F/16-2 is a PTC resettable fuse manufactured by TE Connectivity.

  • Series: PolySwitch series
  • Voltage Rating: 16V
  • Maximum Current: 100A
  • Resistance: 0.015 to 0.050 Ohm
  • Time to Trip: 5s
  • Mounting Type: Surface Mount
  • Package Size: 1812 (4532 Metric) Concave
  • Package: Reel
  • Supply and Demand: Limited
