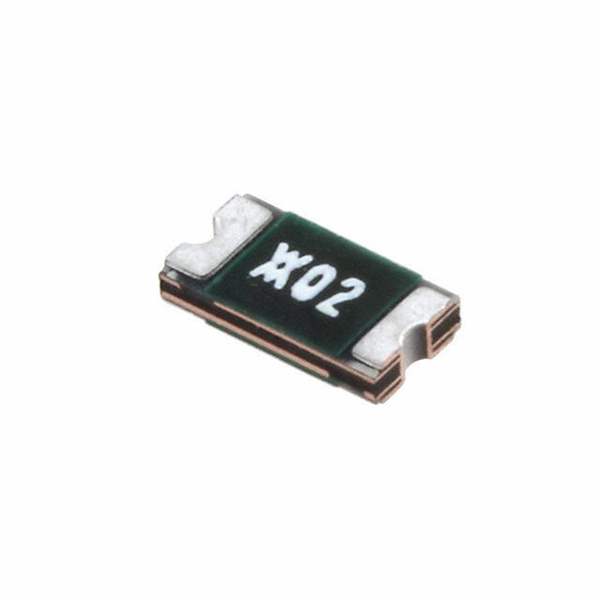

NANOSMDC075F-2 TE Connectivity
Same model may have multiple batches, images only for reference.

NANOSMDC075F-2

Part No NANOSMDC075F-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Wire Form Not Required
Current Rating (Max) 100(A)
Packaging Tape and Reel
Operating Temperature Max Deg. C 85C
Voltage Rating Max 6VDC
Agency Approvals CSA/TUV/UL
Hold Current 0.75(A)
Trip Current 1.5(A)
Initial Resistance (Min) 0.09(Ohm)
Post Trip Resistance (Max) 0.3(Ohm)
Power Dissipation (Typ) 0.8(MAX) W
Trip Time (Max) 0.1@8A(s)
Operating Temperature Min Deg. C -40C
Power Dissipation 0.8(W)
Win Source Part Number 095459-NANOSMDC075F-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Computers & Computer Peripherals, Consumer Electronics, Communications & Networking, Automotive, Portable Devices, Multimedia
Ultra Librarian 3D Model Ultra Librarian NANOSMDC075F-2 CAD Model

Description

The TE Connectivity 095459-NANOSMDC075F-2 is a tape and reel packaged circuit protection device.

  • Maximum Current Rating: 100A
  • Maximum Voltage Rating: 6VDC
  • Operating Temperature Range: -40C to 85C
  • Initial Resistance: 0.09 Ohm
  • Post-Trip Resistance: 0.3 Ohm
  • Trip Current: 1.5A
  • Hold Current: 0.75A
  • Power Dissipation: 0.8W
  • Trip Time: 0.1s @ 8A
  • Commonly used: industrial, computers & computer peripherals, consumer electronics, communications & networking, automotive, and portable devices.
  • Approval: CSA/TUV/UL approved.
