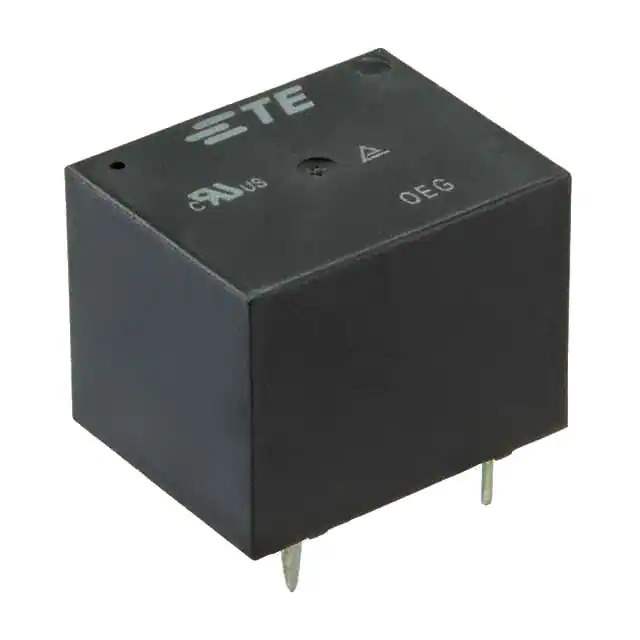

ORWH-SH-112D1F,000 Real Image
Same model may have multiple batches, images only for reference.

ORWH-SH-112D1F,000

Part No ORWH-SH-112D1F,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series ORWH, OEG
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 277VAC, 28VDC - Max
Coil Current 30 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -30°C ~ 70°C
Contact Material Silver Zinc Oxide (AgZnO)
Relay Type General Purpose
Coil Resistance 400 Ohms
Base Product Number ORWH-SH
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 849157-ORWH-SH-112D1F,000
Ultra Librarian 3D Model Ultra Librarian ORWH-SH-112D1F,000 CAD Model

Description

The TE Connectivity 849157-ORWH-SH-112D1F,000 is a power relay with a contact form of SPDT (1 Form C).

  • Contact Form: SPDT (1 Form C)
  • Switching Capacity: over 2 amps
  • Coil Resistance: 400 ohms
  • Coil Current: 30 mA
  • Operate Time: 10 ms
  • Release Time: 5 ms
  • Coil Voltage: 12VDC
  • Contact Rating: 10A
  • Switching Voltage: 277VAC and 28VDC maximum
  • Relay Type: sealed
  • Sealed Rating: fully sealed
  • Mounting Type: through-hole
  • Operating Temperature: -30°C to 70°C
  • REACH: undefined
  • HTSUS Code: 8536.41.0045
  • Primary Material: not specified
