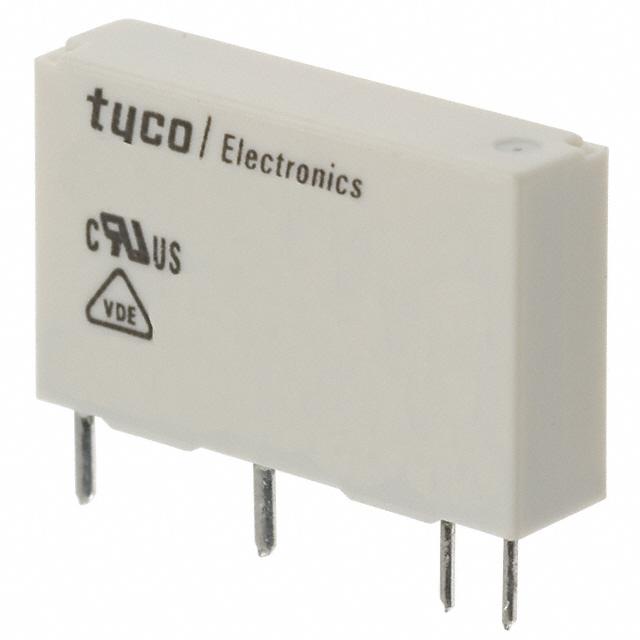

PCN-105D3MHZ,000 TE Connectivity
Same model may have multiple batches, images only for reference.

PCN-105D3MHZ,000

Part No PCN-105D3MHZ,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 3A 5V
Datasheet
PCN-105D3MHZ,000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 24mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 3A
Switching Voltage 277VAC, 125VDC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 8ms
Release Time 3ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 120 mW
Coil Resistance 208 Ohms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 108044-PCN-105D3MHZ,000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PCN-105D3MHZ,000 CAD Model

Description

The electronic component with Id 278310 is a product manufactured by TE Connectivity Potter & Brumfield Relays.

  • Win Source Part Number: 108044-PCN-105D3MHZ,000
  • Packaging: Tube/rail
  • Termination Style: PC pin
  • Design: Sealed
  • Contact Form: SPST-NO (1 Form A)
  • Type: General-purpose relay
  • Coil Type: Non-latching
  • Coil Voltage: 5VDC
  • Contact Rating (Current): 3A
  • Popularity: Medium
  • Fake Products Threat: 64 percent
  • Supply and Demand: Balanced
