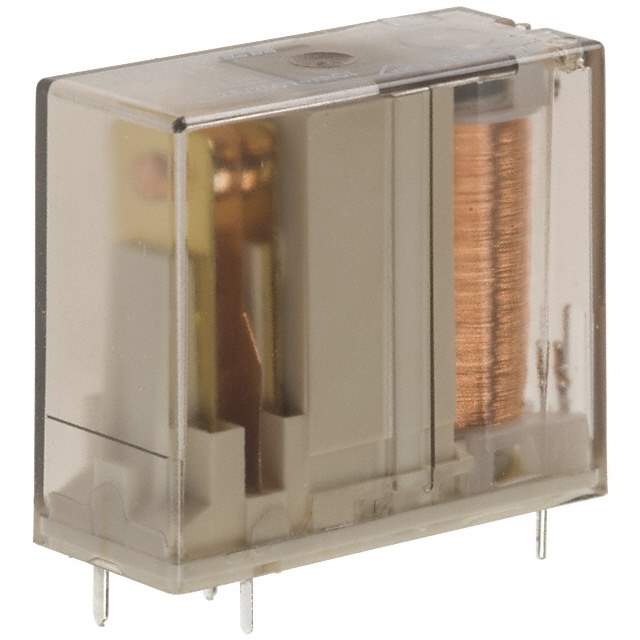

RP710024 Real Image
Same model may have multiple batches, images only for reference.

RP710024

Part No RP710024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Datasheet
RP710024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 21.8mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 8ms
Release Time 2ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 500 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 210851-RP710024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RP710024 CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general-purpose relay with a SPDT (1 Form C) contact form.

  • Coil Voltage: 24VDC
  • Coil Resistance: 1.1 kOhms
  • Switching Voltage: 400VAC
  • Contact Rating: 16A
  • Design: Sealed, full protection
  • Mounting Style: Through-hole
  • Operating Temperature: -40°C to 70°C
  • Supply and Demand Status: Limited
