Same model may have multiple batches, images only for reference.

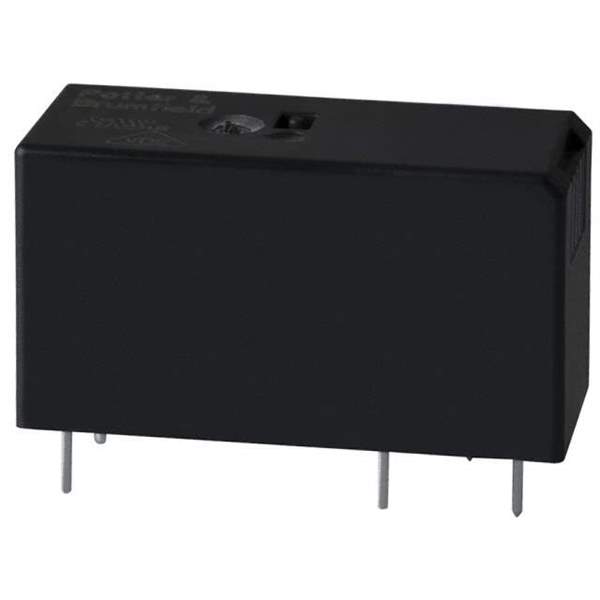

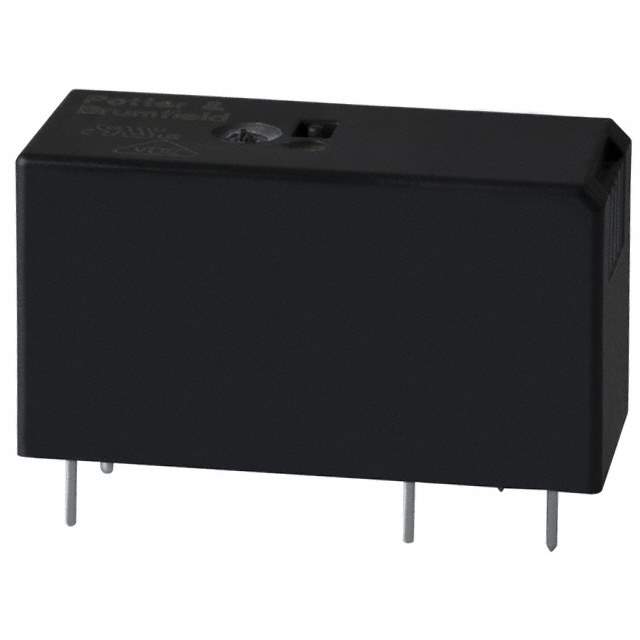

RTB14005F Real Image
Same model may have multiple batches, images only for reference.

RTB14005F

Part No RTB14005F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 5V / General Purpose Relay SPDT (1 Form C) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series RT1
Package Box
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 80.6 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 62 Ohms
Base Product Number RTB14
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1350187-RTB14005F
Ultra Librarian 3D Model Ultra Librarian RTB14005F CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 1350187-RTB14005F is a general-purpose power relay that has a single-pole double-throw (SPDT) contact form.

  • Coil Voltage: 5VDC
  • Coil Resistance: 62 Ohms
  • Contact Rating: 12A
  • Switching Voltage: 400VAC - Max
  • Must Operate Voltage: 3.5VDC
  • Must Release Voltage: 0.5VDC
  • Seal Rating: Fully Sealed
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 85°C
