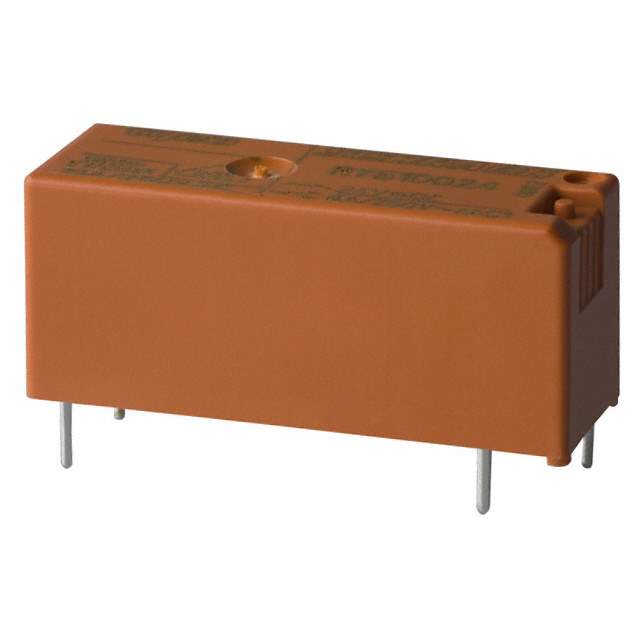

RY612005 Real Image
Same model may have multiple batches, images only for reference.

RY612005

Part No RY612005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPDT 8A 5V
Datasheet
RY612005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44.6mA
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 9ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 223 mW
Coil Resistance 112 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 027668-RY612005
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RY612005 CAD Model

Description

The electronic component with Id 310653 is a general-purpose relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: SPDT
  • Sealed
  • Mounting: Through hole
  • Coil Voltage: 5VDC
  • Coil Resistance: 112 Ohms
  • Coil Current: 44.6mA
  • Contact Rating: 8A
  • Switching: Up to 400VAC
  • Operate Time: 9ms
  • Release Time: 5ms
  • Coil Power: 223mW
  • Temperature Range: -40°C to 70°C
  • Supply and Demand Status: Balanced
