Same model may have multiple batches, images only for reference.

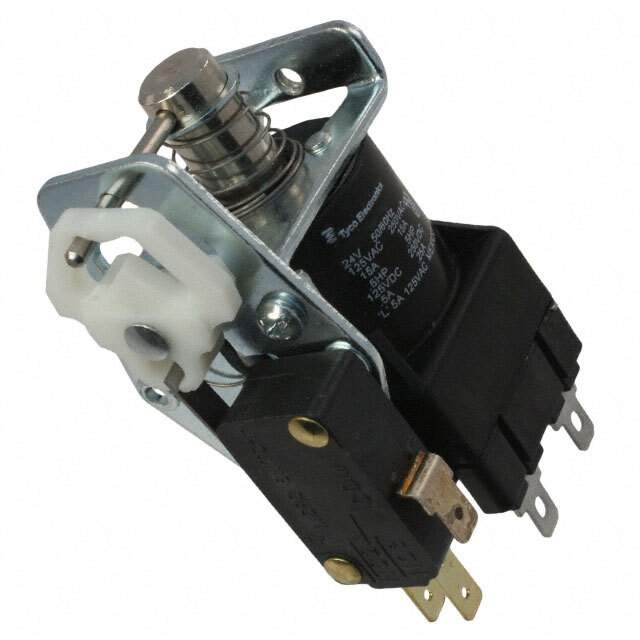

S89R5AAC1-240 Real Image
Same model may have multiple batches, images only for reference.

S89R5AAC1-240

Part No S89R5AAC1-240
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY IMPULSE SPDT 15A 240V / Impulse Relay SPDT (1 Form C) 240VAC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series S89R
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 240VAC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 15 A
Switching Voltage 277VAC - Max
Coil Current 38 mA
Coil Type Latching, Single Coil
Termination Style Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 204 VAC
Temperature Range - Operating -10°C ~ 60°C
Relay Type Impulse
Coil Resistance 1.08 kOhms
Base Product Number S89R5A
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0075
Other Names 1423986-7
Standard Package 25
Win Source Part Number 1001560-S89R5AAC1-240
Ultra Librarian 3D Model Ultra Librarian S89R5AAC1-240 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays electronic component with the Win Source Part Number 1001560-S89R5AAC1-240 is a power relay that falls under the category of over 2 Amps.

  • Series: S89R
  • Termination Style: Quick connect - 0.187" (4.7mm)
  • Contact Form: Single form C
  • Coil Resistance: 1.08 kOhms
  • Type: Impulse relay with a latching, single coil type
  • Coil Voltage: 240VAC
  • Contact Rating (Current): 15 A
  • Switching Voltage: 277VAC - Max
  • Mounting: Chassis mountable
  • Temperature Range: -10°C ~ 60°C
