Same model may have multiple batches, images only for reference.

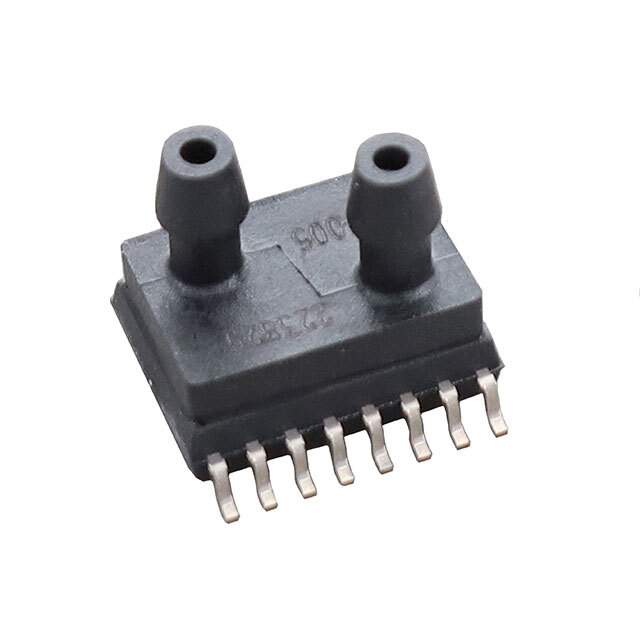

SM9333-BCE-S-125-000 Real Image
Same model may have multiple batches, images only for reference.

SM9333-BCE-S-125-000

Part No SM9333-BCE-S-125-000
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description 125PA DIFF. DIGITAL PRESSURE SEN / Pressure Sensor -0.02 ~ 0.02PSI (-0.12 ~ 0.13kPa) Differential Male - 0.12" (3mm) Tube, Dual 16 b 16-SOIC Module, Dual Top Ports
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr TE Connectivity Measurement Specialties
Series SM9333
Package Box
Pressure Type Differential
Operating Pressure -0.02 ~ 0.02PSI (-0.12 ~ 0.13kPa)
Output Type I2C
Output 16 b
Accuracy ±3%
Voltage - Supply 3V ~ 5.5V
Port Size Male - 0.12" (3mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style Gull Wing
Maximum Pressure 1.02PSI (7kPa)
Temperature Range - Operating -20°C ~ 85°C
Package / Case 16-SOIC Module, Dual Top Ports
Supplier Device Package SOIC-16 Dual
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Other Names 223-SM9333-BCE-S-125-000,9333-BCE-S-125-000
Standard Package 1
Win Source Part Number 1145474-SM9333-BCE-S-125-000
Ultra Librarian 3D Model Ultra Librarian SM9333-BCE-S-125-000 CAD Model

Description

The 1145474-SM9333-BCE-S-125-000 is a differential pressure sensor manufactured by TE Connectivity Measurement Specialties.

  • Series: SM9333
  • Termination Style: Gull-wing
  • Feature: Temperature-compensated
  • Output Type: I2C
  • Output Bits: 16-bit
  • Accuracy: ±3%
  • Operating Pressure: -0.02 ~ 0.02PSI (-0.12 ~ 0.13kPa)
  • Maximum Pressure: 1.02PSI (7kPa)
  • Port: Dual top
  • Port Style: Barbed
  • Package: 16-SOIC module
