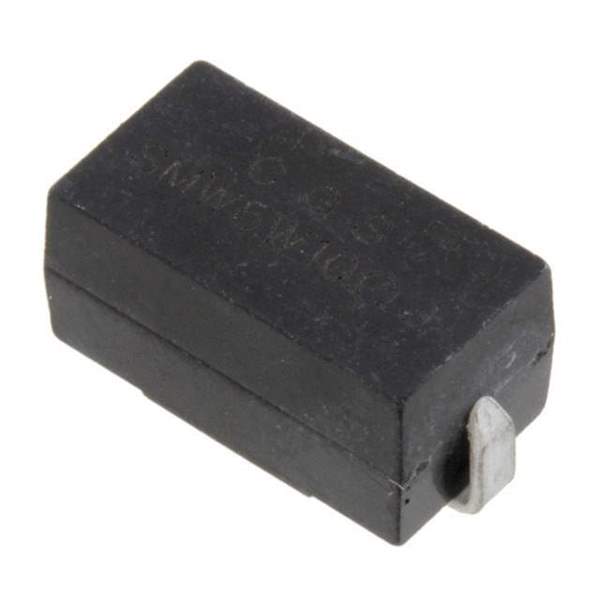

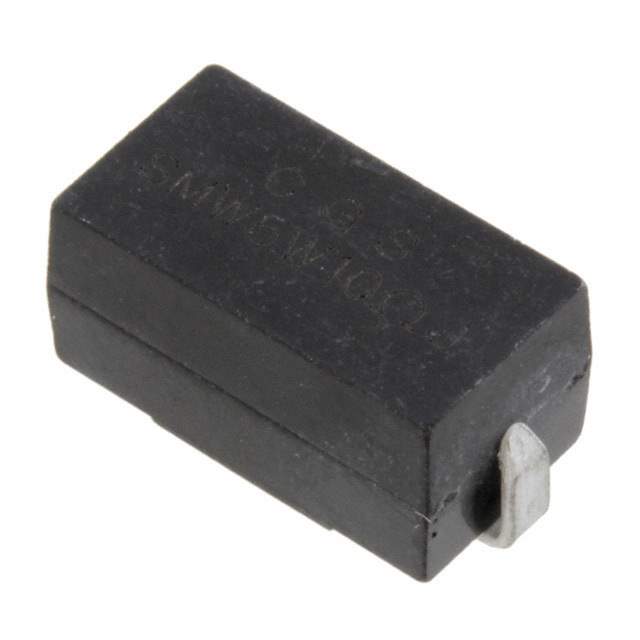

The SMF522KJT is a precision metal film resistor manufactured by TE Connectivity. It is designed for applications requiring high stability, low noise, and tight tolerance. It features a 5.11 kOhm resistance with a tolerance of 1%. The SMF series is known for its excellent performance characteristics and suitability for precision circuits.

Applications:

• Precision Analog Circuits: Used in instrumentation amplifiers, signal conditioners, and data acquisition systems.
• Medical Equipment: Employed in medical devices requiring accurate and stable resistance values.
• Test and Measurement Equipment: Found in multimeters, oscilloscopes, and other test equipment.
• Audio Equipment: Used in high-end audio amplifiers and preamplifiers for low noise and distortion.
• Aerospace and Defense: Utilized in aerospace and defense electronics for high reliability.

Features:

• Metal Film Construction: Provides excellent stability and low temperature coefficient of resistance (TCR).
• Tight Tolerance: Offers a tolerance of 1% for precise resistance values.
• Low Noise: Minimizes noise generation in sensitive circuits.
• Small Size: Allows for use in high-density circuit board designs.
• Surface Mount Technology (SMT): Designed for automated assembly processes.

Benefits:

• High Stability: Metal film construction ensures minimal resistance drift over time and temperature.
• Accurate Resistance: Tight tolerance allows for precise control of circuit parameters.
• Low Noise Performance: Minimizes noise interference in sensitive applications.
• Compact Design: Small footprint allows for use in space-constrained environments.
• Automated Assembly: SMT design simplifies the manufacturing process.

Additional Details:

Consult the manufacturer's datasheet for detailed specifications, including power rating, voltage rating, temperature coefficient of resistance (TCR), and operating temperature range. The termination finish is designed for reflow soldering processes. The SMF series resistors offer a balance of precision, stability, and reliability for demanding applications.
