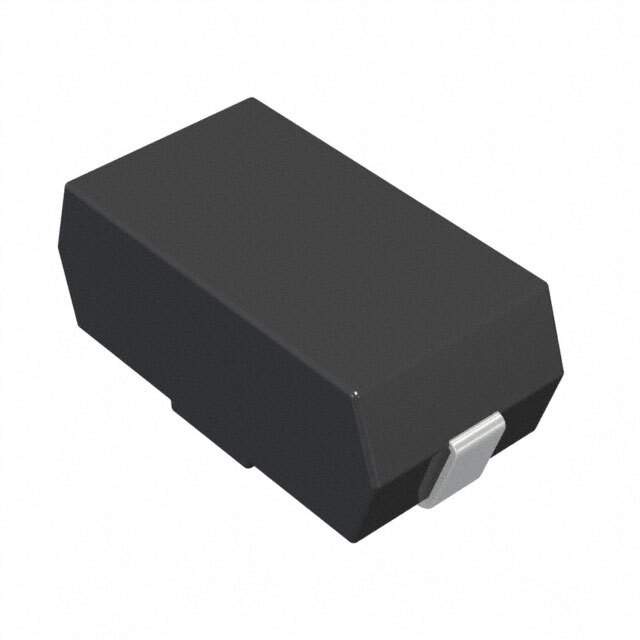

SMV1W560KJT Real Image
Same model may have multiple batches, images only for reference.

SMV1W560KJT

Part No SMV1W560KJT
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description SMV 1W 560K 5%  /  560 kOhms ±5% 1W Chip Resistor 2616 (6740 Metric), J-Lead Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety Metal Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SMV
Package Tape & Reel
Resistance 560 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Film
Features Anti-Sulfur, Flame Proof, High Voltage, Pulse Withstanding, Safety
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -65°C ~ 200°C
Package / Case 2616 (6740 Metric), J-Lead
Supplier Device Package SMD
Dimension 0.264" L x 0.157" W (6.70mm x 4.00mm)
Height - Seated (Max) 0.152" (3.85mm)
Number of Terminations 2
Base Product Number SMV1
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A130767DKR,1-2176322-0,A130767TR,A130767CT
Standard Package 2,000
Win Source Part Number 1035542-SMV1W560KJT
Ultra Librarian 3D Model Ultra Librarian SMV1W560KJT CAD Model

Description

The SMV1W560KJT is a chip resistor - surface mount electronic component manufactured by TE Connectivity Passive Product.

  • Composition: metal film
  • Power: 1W
  • Resistance: 560 kOhms
  • RoHS: compliant
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Features: anti-sulfur, flame proof, high voltage, pulse withstanding, and safety
  • Packaging: tape and reel
  • Standard Packages: 2,000
  • Cross-Reference: alternative part for SMV1W560KJT1-2176322-0
  • Category: Resistors>Chip Resistor - Surface Mount
