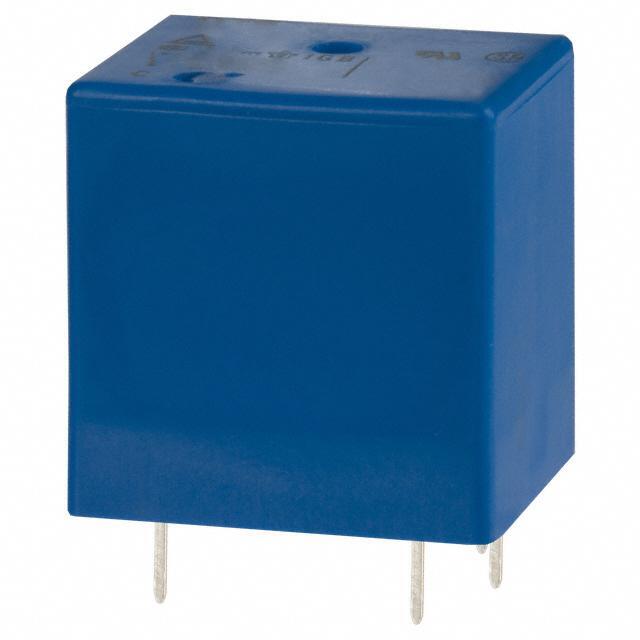

SRUDH-SH-112D1,000 TE Connectivity
Same model may have multiple batches, images only for reference.

SRUDH-SH-112D1,000

Part No SRUDH-SH-112D1,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 12V / Power Relay 12VDC 12A SPDT(20.2x16.5x20.6)mm THT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series SRUDH, OEG
Packaging Tube
Part Status Obsolete(EOL)
Relay Type General
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 0.6 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 360 mW
Coil Resistance 400 Ohms
Operating Temperature Range -30°C ~ 80°C
Win Source Part Number 795418-SRUDH-SH-112D1,000
Popularity Medium
Supply and Demand Status Limited
Family Name SRUDH
Introduction Date March 29, 2004
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SRUDH-SH-112D1,000 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 795418-SRUDH-SH-112D1,000 is a general relay with a SPDT contact form and a coil voltage of 12VDC from TE Connectivity Potter & Brumfield Relays

  • Contact Form: SPDT
  • Coil Voltage: 12VDC
  • Maximum Switching Voltage: 240VAC, 28VDC
  • Series: SRUDH
  • Sealed: Fully sealed
  • Insulation Class: A
  • Status: Obsolete
  • Supply and Demand Status: limited
