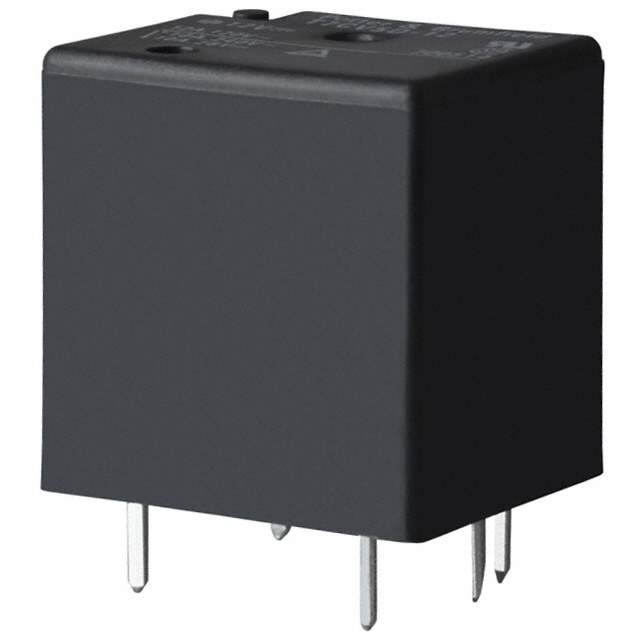

T7CS1D-12 Real Image
Same model may have multiple batches, images only for reference.

T7CS1D-12

Part No T7CS1D-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 12A 12V
Datasheet
T7CS1D-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 12A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 212533-T7CS1D-12
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T7CS1D-12 CAD Model

Description

This relay component is manufactured by TE Connectivity Potter & Brumfield Relays and has a coil voltage of 12VDC.

  • Contact Rating: 12A
  • Switching Voltage: 240VAC, 28VDC - Max
  • Relay Type: General purpose
  • Coil Type: Non-latching
  • Mounting: Through hole
  • Termination Style: PC Pin
  • Insulation: Class F
  • Sealed: Fully sealed
  • Supply and Demand Status: Balanced.
