Same model may have multiple batches, images only for reference.

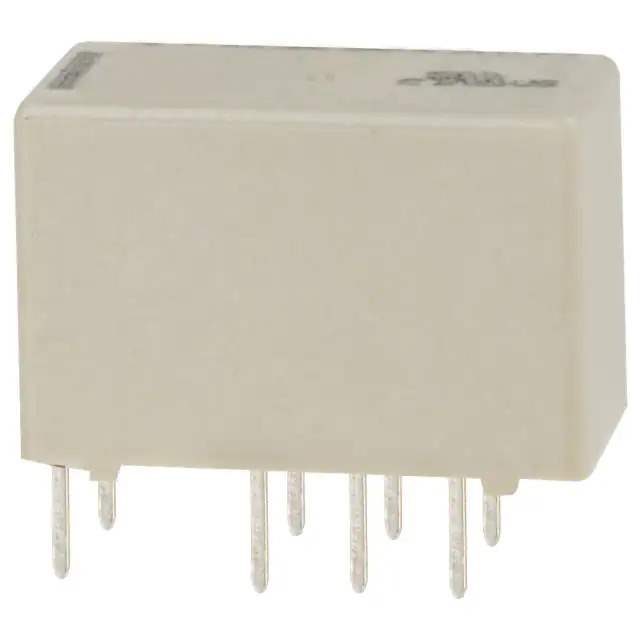

V23079A1005B301 Real Image
Same model may have multiple batches, images only for reference.

V23079A1005B301

Part No V23079A1005B301
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr TE Connectivity
Series V23079, AXICOM
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 5.8 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi), Gold (Au)
Relay Type General Purpose
Coil Resistance 4.11 kOhms
Base Product Number V23079
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 849185-V23079A1005B301
Ultra Librarian 3D Model Ultra Librarian V23079A1005B301 CAD Model

Description

The V23079A1005B301 is a signal relay from the V23079 series by AXICOM, a brand of TE Connectivity.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2 A
  • Coil Voltage: 24VDC
  • Coil Resistance: 4.11 kOhms
  • Coil Current: 5.8 mA
  • Operate Time: 4 ms
  • Release Time: 4 ms
  • Relay Type: general-purpose
  • Switching Voltage: 250VAC and 220VDC - Max
  • Mounting Type: through-hole
  • Operating Temperature: -40°C to 85°C
