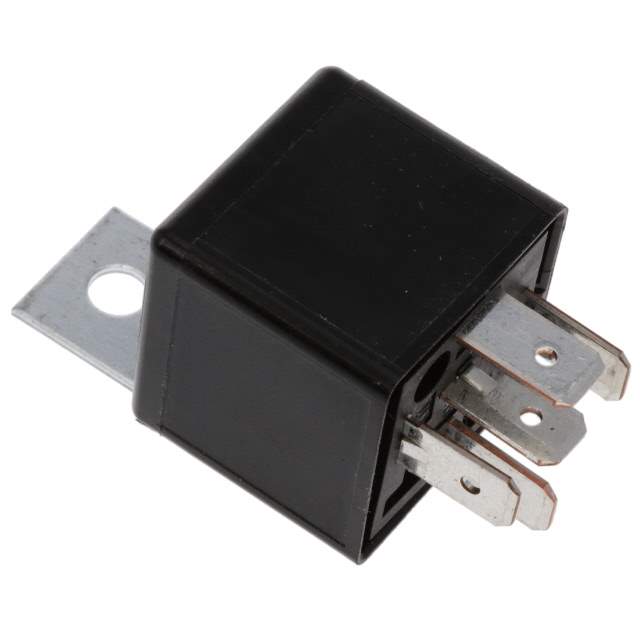

V23134A1052C643 Real Image
Same model may have multiple batches, images only for reference.

V23134A1052C643

Part No V23134A1052C643
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPDT 40A 12V  /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr TE Connectivity Potter & Brumfield Relays
Series F4
Package Bulk
Coil Type Non Latching
Coil Current 133 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 40 A
Switching Voltage 14VDC - Max
Must Operate Voltage 7.2 VDC
Must Release Voltage 1.6 VDC
Operate Time 7 ms
Release Time 2 ms
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.250" (6.3mm)
Temperature Range - Operating -40°C ~ 125°C
Contact Material Silver (Ag)
Coil Power 1.6W
Coil Resistance 90 Ohms
Base Product Number V23134
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 5-1393302-8,5-1393302-8-ND,PB2138,V23134A1052C643-ND
Standard Package 200
Win Source Part Number 1129701-V23134A1052C643
Ultra Librarian 3D Model Ultra Librarian V23134A1052C643 CAD Model

Description

TE Connectivity Potter & Brumfield Relays F4 series SPDT (1 Form C) automotive relay is a chassis mount non-latching relay with quick connect termination style of 0.250" (6.3mm).

  • Coil Voltage: 12VDC
  • Coil Resistance: 90 Ohms
  • Contact Rating (Current): 40A
  • Switching Voltage: 14VDC - Max
  • Operate Time: 7ms
  • Release Time: 2ms
  • Coil Current: 133mA
  • Coil Power: 1.6W
  • Temperature Range: -40°C ~ 125°C
  • Package: Bulk package of 200
  • Alternative Parts: 1175079, 5-1393302-8, and V23134-A1052-C643
  • Termination Style: Quick Connect 0.250" (6.3mm)
  • Mounting Type: Chassis Mount
  • Coil Type: Non-Latching
