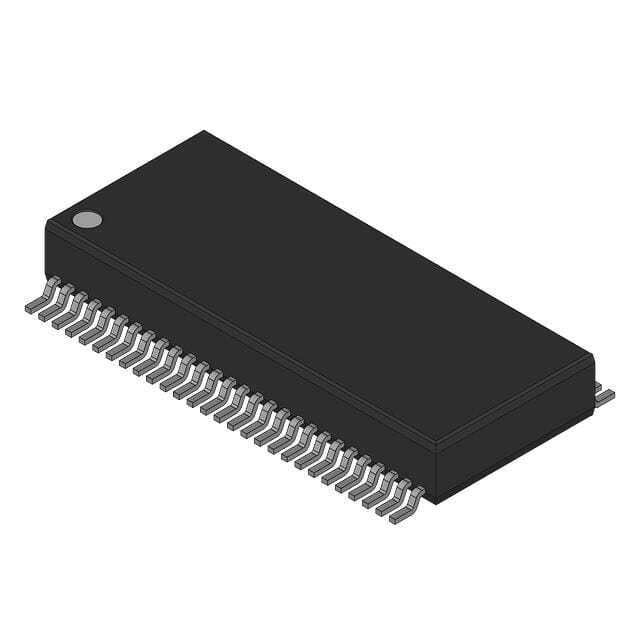

The 74AC16652DLR is a high-performance integrated circuit from the renowned manufacturer Texas Instruments. This device is part of the 74AC series, known for its advanced CMOS logic technology, which allows it to operate at higher speeds while maintaining low power consumption.

Key Features

• Logic Type: 16-Bit Bus Transceiver with 3-State Outputs
• Supply Voltage: Operates from 2V to 6V
• Logic Family: AC
• Output Current: High drive capability with ±24-mA output drive at 5V
• Package / Case: 56-BSSOP (0.295", 7.50mm Width)
• Mounting Type: Surface Mount
• Operating Temperature: -40°C to 85°C

Product Description

The 74AC16652DLR is a versatile bus transceiver that consists of 16 non-inverting bidirectional buffers with 3-state outputs, designed to facilitate byte or word operations in multiplexed bus systems. It is capable of driving heavily loaded bus lines with up to ±24 mA of output drive at 5V. This makes it particularly suitable for driving bus lines of memory address and data multiplexing systems, buffer memory address registers, and bidirectional data paths.

With its wide operating voltage range from 2V to 6V, this device ensures compatibility with a variety of logic levels, making it a flexible choice for interfacing between systems operating at different voltage levels. The 74AC16652DLR also provides low static power consumption, contributing to energy efficiency in the overall design of electronic systems.

Encased in a 56-BSSOP package, the product is designed for surface mounting, which saves valuable board space and is ideal for compact electronic assemblies. The operating temperature range of -40°C to 85°C guarantees reliable performance across a broad spectrum of environmental conditions.

Texas Instruments' commitment to high-quality and reliable products is evident in the 74AC16652DLR, making it a preferred choice for designers and engineers looking for a dependable bus transceiver solution.
