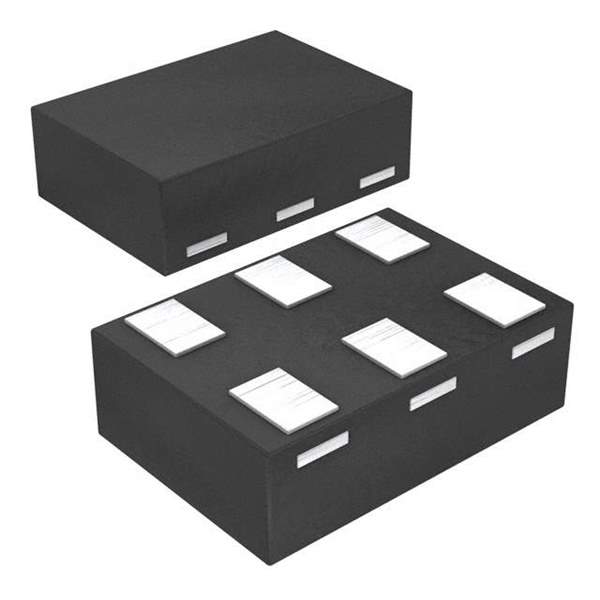

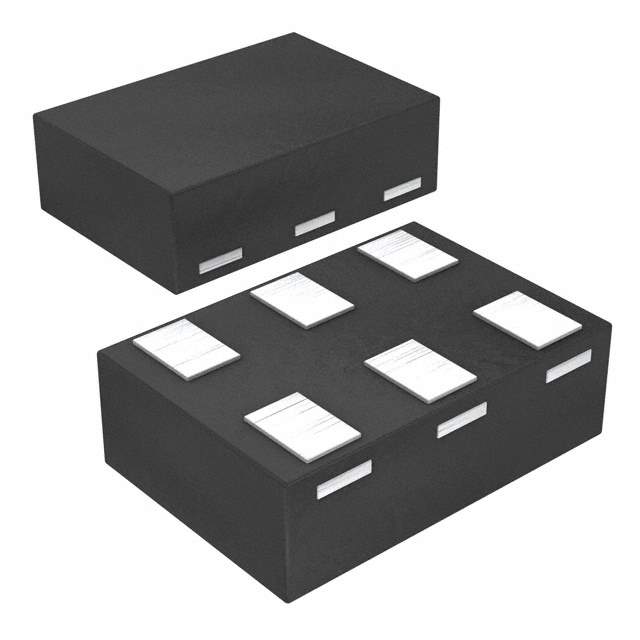

Product Overview: 74LVC1G3157DRYRG4

The 74LVC1G3157DRYRG4 is a state-of-the-art single-pole, double-throw analog switch from Texas Instruments, designed to deliver high performance in a compact package. This versatile component is part of the 74LVC family, which is renowned for its low-voltage operation and compatibility with mixed-voltage systems. The 74LVC1G3157DRYRG4 is optimized for use in a wide range of applications, including signal routing in consumer electronics, communication devices, and industrial equipment.

Key Features

• Low Voltage Operation: Operates at a supply voltage range of 1.65V to 5.5V, making it suitable for portable and battery-powered devices.
• High-Speed Switching: Offers fast switching times, which is critical for applications requiring quick signal routing.
• Low Power Consumption: Features a very low quiescent current, contributing to energy efficiency in end products.
• Broad Compatibility: Interface capability with 5V TTL levels ensures that it can be used in mixed-voltage environments without the need for level shifters.
• ESD Protection: Integrated electrostatic discharge (ESD) protection circuitry guards the device against damage from static electricity.

Product Specifications

• Switch Configuration: SPDT (Single-Pole, Double-Throw)
• On-State Resistance: Typically low, ensuring minimal signal distortion.
• Bandwidth: High bandwidth allows for the transmission of high-frequency signals without significant loss.
• Package: Comes in a small X2SON package, perfect for space-constrained applications.
• Operating Temperature: Designed to work reliably over a broad temperature range.

Applications

The 74LVC1G3157DRYRG4's versatility makes it an ideal choice for a variety of applications. It can be used for analog and digital signal switching in:

• Mobile Phones
• PDAs and Personal Electronics
• Data Communication Systems
• Medical Instruments
• Audio and Video Equipment

With its combination of low-power operation, high-speed switching, and robust ESD protection, the 74LVC1G3157DRYRG4 from Texas Instruments is an excellent choice for designers looking to add reliable and efficient signal switching capabilities to their electronic projects.
