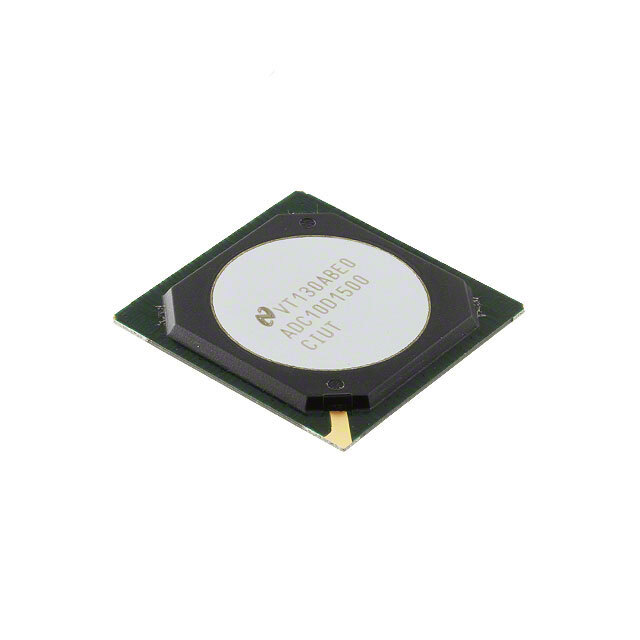

ADC10D1500CIUT

Part No ADC10D1500CIUT
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 10BIT FOLD INTERP 292BGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 5 Weeks
Features 10 Bit Analog to Digital Converter 2 Input 2 Folding Interpolating 292-BGA (27x27)
Manufacturer Texas Instruments
Package Tray
Operating Temperature Range -40°C ~ 70°C
Mounting Surface Mount
Package 292-BBGA
Case / Package 292-BGA (27x27)
Family Name ADC10D1500
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN 3A001A5A2
HTSUS 8542.39.0001
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 910199-ADC10D1500CIUT
Ultra Librarian 3D Model Ultra Librarian ADC10D1500CIUT CAD Model

Description

The ADC10D1500CIUT is a state-of-the-art, high-performance analog-to-digital converter (ADC) developed by Texas Instruments. This cutting-edge device is designed to cater to the demanding needs of advanced digital signal processing applications such as telecommunications, radar systems, medical imaging, and high-speed instrumentation.

Key Features

  • Dual-Channel Operation: The ADC10D1500CIUT features two independent ADC channels, which allows for simultaneous sampling and processing of signals, enhancing the efficiency of multi-channel systems.
  • High Sampling Rate: With a maximum sampling rate of 1.5 GSPS (giga-samples per second), this ADC provides high-speed data conversion that is essential for capturing fast transient signals and for high bandwidth applications.
  • Excellent Dynamic Performance: It boasts an exceptional signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), ensuring high-fidelity signal conversion and accurate representation of the original analog signal.
  • Resolution: The 10-bit resolution of the ADC10D1500CIUT ensures fine quantization levels, resulting in detailed and precise digital output.
  • Low Power Consumption: Designed with power efficiency in mind, this ADC minimizes power consumption without compromising performance, making it suitable for power-sensitive applications.
  • Integrated Features: The device includes integrated features such as a voltage reference and a sample-and-hold circuit, which reduce the need for external components and simplify the design process.
  • Package: Housed in a compact, surface-mount package, the ADC10D1500CIUT is designed for easy integration into a wide range of electronic systems.

Applications

The ADC10D1500CIUT is versatile and can be used in various high-speed data acquisition systems. Its robust design and high-speed capabilities make it an ideal choice for:

  • Wireless Communication Infrastructure
  • Direct RF Down Conversion Systems
  • Test and Measurement Equipment
  • Medical Imaging Devices
  • High-Speed Data Acquisition Systems

In summary, the ADC10D1500CIUT by Texas Instruments is a high-speed, dual-channel, 10-bit ADC that offers exceptional performance for applications requiring precise and rapid signal conversion. Its integration of advanced features, along with its high sampling rate and dynamic performance, makes it a leading choice for engineers and designers in the high-speed data conversion market.
