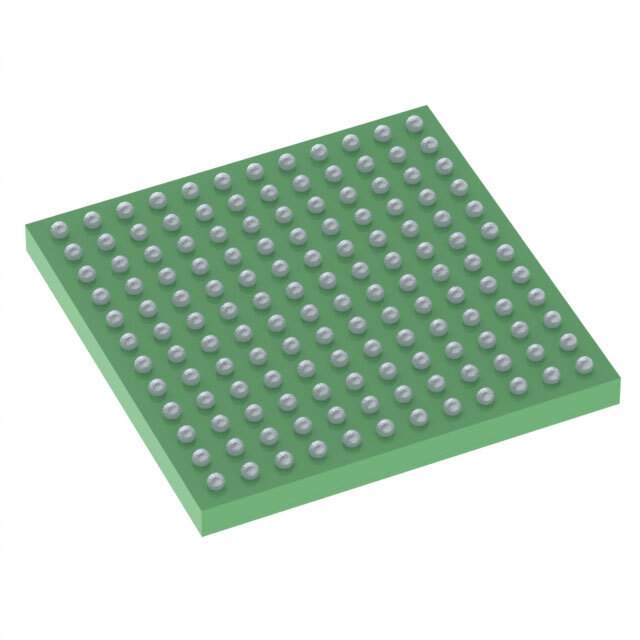

The ADC12DJ2700AAV is a high-performance, dual-channel, 12-bit analog-to-digital converter (ADC) from Texas Instruments, designed to cater to the demanding requirements of advanced RF sampling and signal processing applications. This cutting-edge device boasts an impressive sampling rate of up to 2700 MSPS (mega-samples per second), providing the precision and speed necessary for high-speed data acquisition, radar systems, test and measurement equipment, and communication infrastructure.

Key Features

• High-Speed Performance: With a maximum sampling rate of 2700 MSPS, the ADC12DJ2700AAV enables the digitization of high-frequency signals with exceptional fidelity.
• Dual-Channel Operation: The dual-channel architecture allows simultaneous sampling of two analog inputs, which is essential for applications requiring phase-coherent sampling or MIMO (Multiple Input, Multiple Output) systems.
• Wide Input Bandwidth: The device features a wide analog input bandwidth, making it suitable for direct RF sampling of signals, thus simplifying system design and reducing component count.
• JESD204B Interface: The inclusion of the JESD204B high-speed serial interface ensures efficient data transfer to downstream digital processing units, while minimizing the number of input/output connections required.
• Programmable Gain: Users can adjust the full-scale range of the input signal via programmable gain settings, allowing for optimal dynamic range and signal-to-noise ratio (SNR).
• Power Efficiency: Despite its high-speed capabilities, the ADC12DJ2700AAV is designed for power efficiency, which is critical for thermal management and power-constrained applications.

Applications

The ADC12DJ2700AAV is ideally suited for a variety of advanced applications, including:

• High-speed data acquisition systems
• Radar and satellite communication systems
• Wireless infrastructure (e.g., 5G)
• Test and measurement equipment
• Medical imaging (e.g., MRI)

With its robust performance and versatile features, the ADC12DJ2700AAV from Texas Instruments represents a significant advancement in ADC technology, enabling engineers to design more efficient, high-performance systems that meet the evolving needs of modern electronics.
