Texas Instruments ADS1225IRGVR Precision ADC

The ADS1225IRGVR from Texas Instruments is a precision, 24-bit, analog-to-digital converter (ADC) designed with the purpose of providing high-accuracy data acquisition in a variety of applications. This component is particularly suitable for those demanding scenarios where small signal variations need to be detected with high fidelity, such as in industrial instrumentation, temperature sensing with RTDs or thermocouples, and pressure sensing.

Key Features:

• Resolution: The ADS1225IRGVR offers a high-resolution 24-bit output, ensuring that even the smallest signal changes are captured with precision.
• Data Rate: It provides a programmable data rate up to 2 kSPS, allowing users to balance speed and resolution based on their specific application needs.
• Input Channels: This ADC features four differential or seven single-ended input channels, offering flexibility in connecting various sensors and input signals.
• Interface: A simple SPI-compatible serial interface facilitates easy communication with microcontrollers and digital systems.
• Power Supply: It operates with a wide supply range from 2.7V to 5.5V, accommodating various system power requirements.

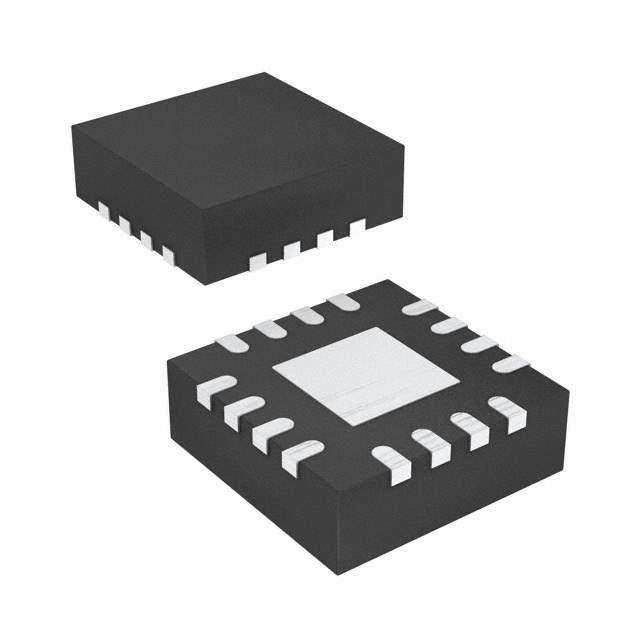

• Package: The device is available in a compact VQFN-16 package, making it suitable for space-constrained applications.

Applications:

• Industrial Process Control
• Temperature Monitoring with RTDs and Thermocouples
• Pressure Sensing
• Medical Equipment
• Smart Transmitters

The ADS1225IRGVR is designed to operate over an extended industrial temperature range, enhancing its reliability in harsh environments. Its built-in programmable gain amplifier (PGA) provides gains up to 128, which is particularly useful for low-level signal amplification. Additionally, the device includes an internal oscillator, eliminating the need for an external clock source, and supports selectable reference sources, including an on-chip reference for simplified system design.

With its exceptional performance and versatility, the ADS1225IRGVR is an ideal choice for engineers and designers looking to incorporate high-precision analog-to-digital conversion into their systems.
