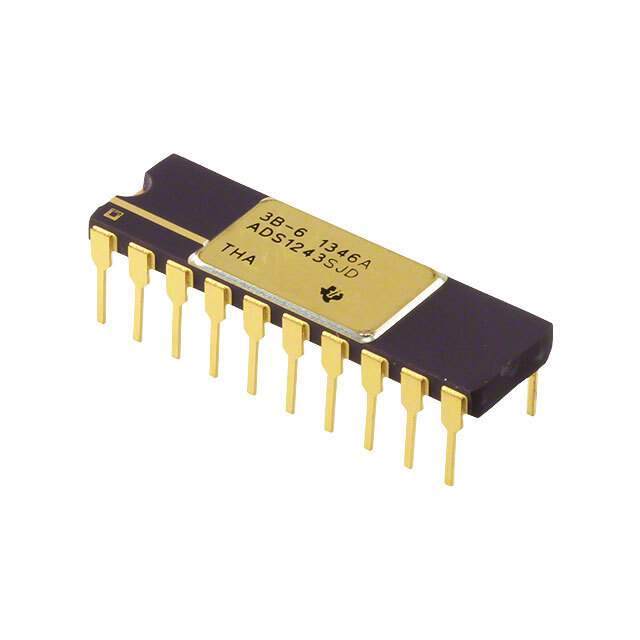

The ADS1243SJD by Texas Instruments is a precision, integrated analog-to-digital converter (ADC) that offers a comprehensive solution for demanding sensor measurement applications. This high-performance device is designed to deliver exceptional accuracy and low noise in a compact, surface-mount package, making it an ideal choice for a wide range of industries, including medical, industrial, and instrumentation.

Key Features

• High Resolution: The ADS1243SJD features a 24-bit delta-sigma ADC, providing high-resolution measurements that are critical for precise data acquisition.
• Multiple Input Channels: Equipped with multiple analog input channels, it allows for the monitoring of various sensors such as temperature, pressure, or load cells, with a single device.
• Programmable Gain Amplifier: An onboard programmable gain amplifier (PGA) ensures that small signal variations are accurately captured, enhancing the dynamic range of the measurements.
• Low Power Consumption: Designed with power efficiency in mind, the ADS1243SJD operates with low power consumption, making it suitable for battery-powered applications.
• Integrated Features: The device includes an internal oscillator, reference, and temperature sensor, reducing the need for external components and simplifying system design.
• Flexible Interface: A SPI-compatible serial interface provides easy communication with microcontrollers or digital systems, ensuring straightforward integration into existing designs.

Applications

The versatility of the ADS1243SJD allows it to be used in a variety of applications where precision measurement is key. It is particularly well-suited for:

• Medical devices such as patient monitoring systems and diagnostic equipment
• Industrial process control and automation systems
• Scientific instrumentation requiring accurate data logging
• Portable and battery-operated devices where power efficiency is crucial

In conclusion, the ADS1243SJD from Texas Instruments stands out as a robust and precise ADC solution that offers the versatility and performance needed to meet the stringent requirements of advanced sensing and measurement systems.
