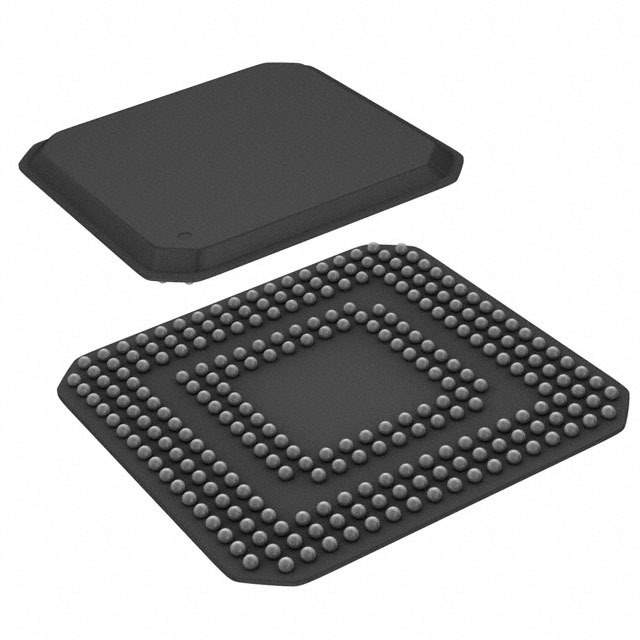

ADS5120CGHK Real Image
Same model may have multiple batches, images only for reference.

ADS5120CGHK

Part No ADS5120CGHK
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC CMOS 10BIT 1.8V 257-BGA
Datasheet
ADS5120CGHK Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Number of Bits 10
Sampling Rate 40M
Number of Inputs 8
Input Type Differential, Single Ended
Data Interface Parallel
Configuration S/H-ADC
Number of A/D Converters 8
Reference Type External, Internal
Analog Supply Voltage 1.65 V to 2 V
Digital Supply Voltage 1.65 V to 2 V
Features Simultaneous Sampling
Temperature Range - Operating 0°C to 70°C
Case / Package 257-BGA MICROSTAR (16x16)
Win Source Part Number 077762-ADS5120CGHK
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS5120CGHK CAD Model

Description

ADS5120CGHK

The ADS5120CGHK stands out for its exceptional integration capabilities in high-performance systems. It blends speed with precision, ideal for cutting-edge applications.

  • Applications:
    • High-definition audio equipment
    • Network infrastructure devices
    • Telecommunication base stations
  • Features and Benefits:
    • Rapid sampling rate supports fast data environments
    • Minimal distortion for clean and accurate signal processing
    • Optimized for reduced electromagnetic interference
  • Additional Details:
    • Wide dynamic range
    • Easy to configure and deploy
    • Offers advanced diagnostics capabilities
