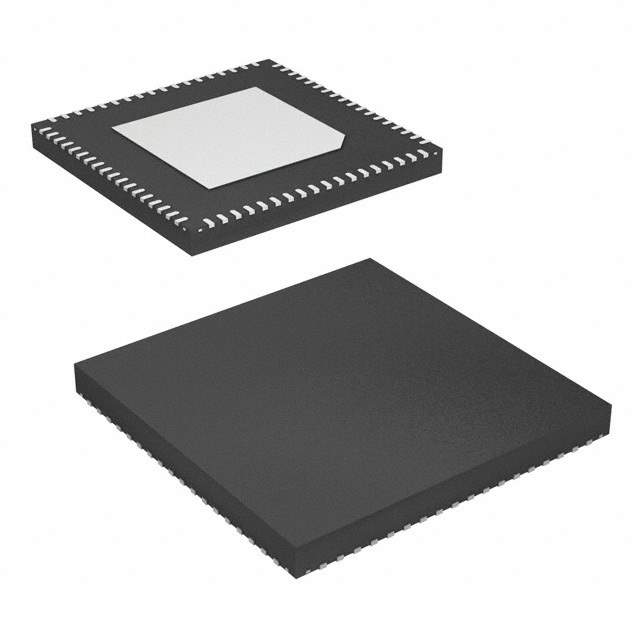

ADS54J64IRMP

Part No ADS54J64IRMP
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 14BIT PIPELINED 72VQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 7 Weeks
Features 14 Bit Analog to Digital Converter 4 Input 4 Pipelined 72-VQFN (10x10)
Manufacturer Texas Instruments
Package Tray
Mounting Surface Mount
Package 72-VFQFN Exposed Pad
Case / Package 72-VQFN (10x10)
Family Name ADS54J64
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A5A4
HTSUS 8542.39.0001
Quantity per package 168
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 860423-ADS54J64IRMP
Ultra Librarian 3D Model Ultra Librarian ADS54J64IRMP CAD Model

Description

The ADS54J64IRMP is a state-of-the-art integrated circuit from Texas Instruments, designed to cater to the high-performance demands of modern digital signal processing applications. This high-speed, multi-channel analog-to-digital converter (ADC) is an integral component for systems requiring precise signal conversion with high dynamic range and fast sampling rates.

Key Features

  • High-Speed Performance: With a sampling rate of up to 500 MSPS (Mega Samples Per Second), the ADS54J64IRMP ensures that high-frequency signals are captured with precision, making it ideal for applications such as wireless communications, radar systems, and test equipment.
  • Multi-Channel Flexibility: This ADC features four synchronized channels, providing the capability for simultaneous signal acquisition. This is particularly beneficial for systems that require multi-antenna or multi-sensor processing.
  • Excellent Signal Fidelity: It boasts a 14-bit resolution, which translates to fine granularity in signal conversion, allowing for the capture of subtle nuances in the input signal. This high resolution, combined with a 73 dBFS Signal-to-Noise Ratio (SNR), ensures excellent signal fidelity.
  • Integrated Digital Down Converter (DDC): The ADS54J64IRMP includes a DDC, which reduces the data rate to a more manageable level for digital processing. This feature is particularly useful in communication systems where bandwidth reduction is essential.
  • Low Power Consumption: Despite its high-speed capabilities, this ADC is designed for low power consumption, making it suitable for applications where power efficiency is crucial.
  • JESD204B Interface: The device supports the JESD204B serial interface standard, which simplifies the data connections between the ADC and digital processors, reducing the number of input/output pins required and easing PCB design constraints.

Applications

The ADS54J64IRMP is versatile and can be employed in a variety of applications, including:

  • Wireless Infrastructure (LTE, 5G)
  • Phased-Array Radar Systems
  • Software Defined Radio (SDR)
  • Data Acquisition Systems
  • Medical Imaging Equipment

With its robust feature set and high-speed performance, the ADS54J64IRMP from Texas Instruments is an excellent choice for designers looking to implement a reliable and efficient data conversion solution in their high-performance systems.
