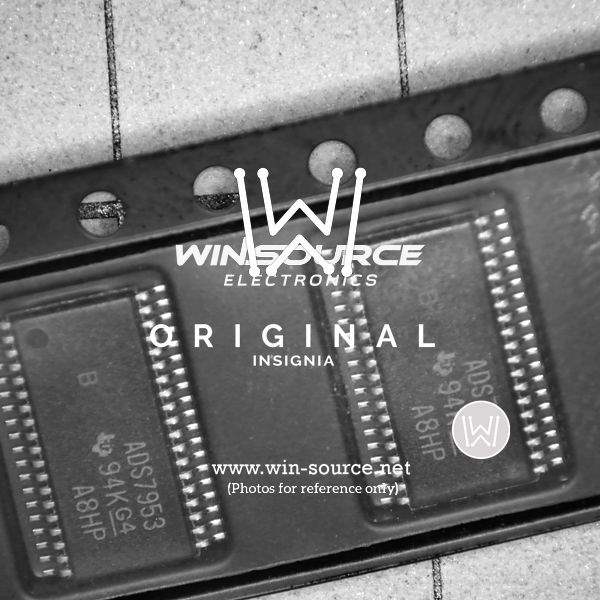

Product Overview: Texas Instruments ADS7953SBDBTR

The ADS7953SBDBTR is a state-of-the-art, multi-channel analog-to-digital converter (ADC) from Texas Instruments designed for high-precision data acquisition in a variety of applications. This ADC is part of the ADS795x family and is particularly well-suited for advanced industrial, automotive, and consumer electronics where accuracy and efficiency are paramount.

Key Features

• Resolution: The device boasts a 12-bit resolution which ensures fine detail in the analog signal conversion process.
• Channels: It includes 16 multiplexed channels, providing a versatile platform for monitoring multiple analog signals.
• Sampling Rate: With a high-speed sampling rate of up to 1 MSPS (mega-samples per second), the ADS7953SBDBTR captures rapid signal changes with ease.
• Interface: The ADC features a user-friendly SPI (Serial Peripheral Interface) that facilitates easy communication with microcontrollers and DSPs.
• Supply Voltage: It operates on a supply voltage ranging from 2.7V to 5.25V, accommodating various system power requirements.
• Power Consumption: Designed for power-sensitive applications, it offers a low-power consumption mode to minimize the impact on system energy resources.
• Package: The device is available in a compact 38-pin TSSOP (Thin Shrink Small Outline Package), ideal for space-constrained applications.

Applications

The ADS7953SBDBTR is versatile enough to be integrated into a wide range of applications, including:

• Automotive sensor monitoring and diagnostics
• Industrial process control and automation
• Battery-powered devices
• Data acquisition systems
• Medical instrumentation

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the ADS7953SBDBTR is no exception. It is built to meet the stringent requirements of industrial and automotive standards, ensuring reliability and performance in the most demanding environments.

With its robust feature set and flexible capabilities, the ADS7953SBDBTR from Texas Instruments stands out as a top choice for designers looking to implement precise and efficient analog-to-digital conversion in their next project.
