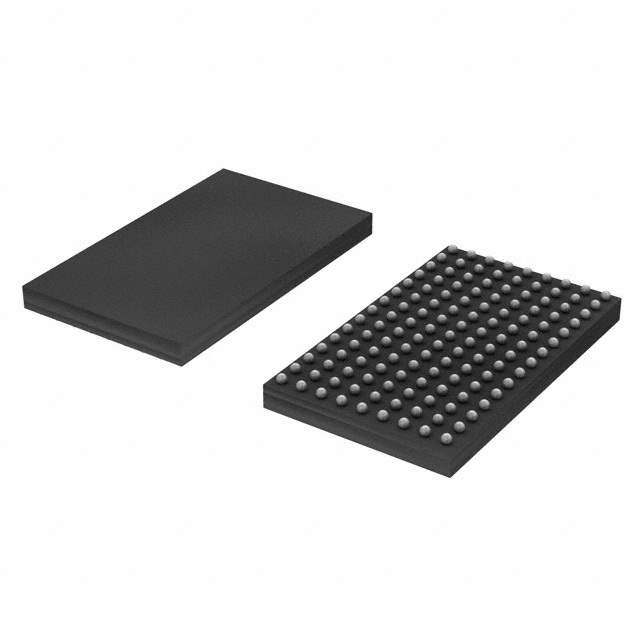

AFE5805ZCF Real Image
Same model may have multiple batches, images only for reference.

AFE5805ZCF

Part No AFE5805ZCF
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog Front End (AFE)
Description IC ANLG FRONT-END 8CH 135-BGA
Datasheet
AFE5805ZCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Number of Bits 12
Number of Channels 8
Power (Watts) 122mW
Analog Supply Voltage 3.15 V to 3.47 V, 5V
Digital Supply Voltage 1.7 V to 1.9 V
Case / Package 135-NFBGA (15x9)
Win Source Part Number 083075-AFE5805ZCF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AFE5805ZCF CAD Model

Description

The AFE5805ZCF is a sophisticated analog front-end solution tailored for ultrasound imaging applications. Its comprehensive functionality and high-levels of channel integration cater to modern diagnostic equipment and ensure enhanced image quality and sensitivity.

Features and Benefits

  • Multi-Channel Integration: Supports high-channel count ultrasound systems for detailed imaging.
  • Low Noise Preamplifier: Enhances image sensitivity and accuracy.
  • Doppler Processing: Enables advanced motion and flow analysis.

Applications

  • Ultrasound Imaging Systems
  • Medical Diagnostic Equipment
  • Portable Ultrasound Devices
