Overview of Texas Instruments BQ24155RGYR

The Texas Instruments BQ24155RGYR is a sophisticated, high-efficiency, synchronous battery charger that caters to a wide array of portable applications. This integrated circuit (IC) is specifically designed to manage power for systems that use a single-cell lithium-ion (Li-Ion) or lithium-polymer (Li-Pol) battery. It stands out for its compact size and advanced features that enable efficient charging and power management.

Key Features

• Input Voltage Range: The BQ24155RGYR operates efficiently with an input voltage range of 4.5 V to 28 V, accommodating various power sources.
• Charge Current: It supports programmable charge currents up to 1.5 A, allowing for fast and flexible charging solutions.
• Power Path Management: This IC integrates dynamic power path management (DPPM) that powers the system while simultaneously and independently charging the battery.
• High Efficiency: The device boasts a high charging efficiency, which is crucial for portable devices where energy conservation is paramount.
• Charge Termination: It features an automatic charge termination based on user-selectable minimum current levels, ensuring safety and preserving battery life.
• Thermal Regulation: To prevent overheating, the BQ24155RGYR includes a thermal regulation mechanism that reduces charge current.

Applications

The BQ24155RGYR from Texas Instruments is ideal for a multitude of applications, particularly where efficient charging and compact size are required. These applications include but are not limited to:

• Smartphones and Tablets
• Portable Media Players
• Handheld GPS Units
• Other Portable Devices Requiring Single-Cell Li-Ion or Li-Pol Batteries

Package and Availability

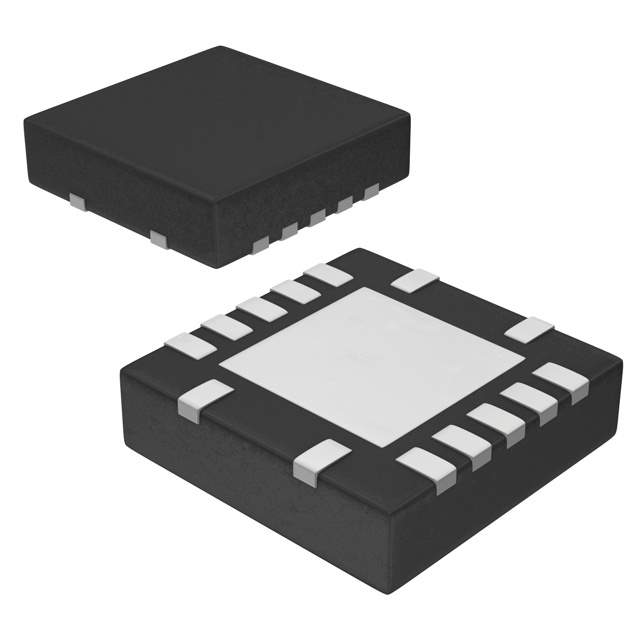

The BQ24155RGYR is offered in a compact QFN package, which is highly suitable for space-constrained applications. It is available through Texas Instruments and authorized distributors, ensuring easy access for designers and manufacturers alike.

Conclusion

In summary, the BQ24155RGYR is a versatile and efficient solution for modern portable devices that require reliable battery charging and management. Its range of features and high performance make it an excellent choice for designers looking to enhance the user experience by extending battery life and reducing charging time.
