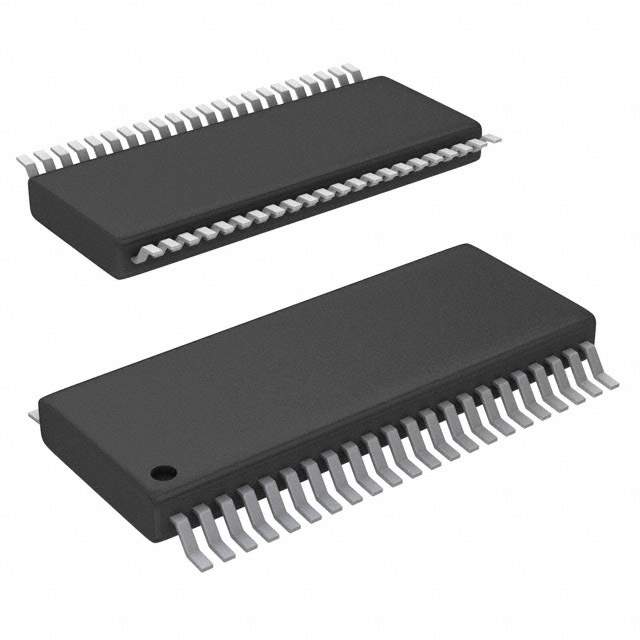

Introducing the BQ34Z651DBTR Battery Monitor IC from Texas Instruments

The BQ34Z651DBTR is a state-of-the-art battery monitor integrated circuit (IC) designed by Texas Instruments (TI) to cater to the advanced requirements of modern portable electronics. This compact, highly integrated power management solution is ideal for a range of applications including smartphones, tablets, digital cameras, and other battery-powered devices where accurate fuel gauging is essential.

At the heart of the BQ34Z651DBTR lies TI's patented Impedance Track™ technology, which enables the device to provide highly accurate battery capacity monitoring. This technology allows the battery monitor to adapt to changes in battery performance over time, ensuring users have a reliable indication of remaining battery life. This is critical for maintaining user confidence and avoiding unexpected shutdowns.

Key Features of the BQ34Z651DBTR:

• Impedance Track™ Algorithm: Offers accurate state-of-charge (SOC) readings by compensating for age, temperature, and discharge rate of the battery.
• Multi-Chemistry Support: Compatible with a variety of battery chemistries including Li-Ion, Li-Polymer, and LiFePO4, providing versatile applications.
• Highly Integrated: Includes an analog-to-digital converter (ADC), temperature sensor, and voltage and current measurement capabilities, all within a single chip.
• Low Power Consumption: Designed for energy efficiency, the IC consumes minimal power, thereby preserving battery life.
• Configurable Alert Functions: Allows setting of overcurrent, overvoltage, undervoltage, and temperature thresholds to protect the battery and the device.
• Communication Interface: The device supports I2C communication, enabling easy integration with a host controller for data exchange and configuration.

With its small footprint, the BQ34Z651DBTR comes in a 3mm x 3mm, 10-pin SON package, making it suitable for space-constrained applications. Its robust design ensures reliable operation across a wide temperature range, making it a trusted choice for portable electronics that require precise battery management.

Overall, the BQ34Z651DBTR from Texas Instruments represents a sophisticated solution for battery fuel gauging, delivering the performance and reliability that both designers and end-users demand from modern electronic devices.
