The CDC2509BPWRG4 is a high-performance clock buffer from Texas Instruments, designed to meet the stringent requirements of today's advanced digital systems. This device is part of the Clock Distribution family, offering a solution for distributing a single clock input to multiple destinations with minimal skew and signal degradation.

Key Features

• Multiple Outputs: The CDC2509BPWRG4 provides nine outputs, allowing for broad distribution of the input clock signal across various subsystems within the application.
• Low Skew: This clock buffer is engineered to ensure low skew between outputs, which is critical for maintaining the timing integrity of digital signals in high-speed systems.
• Wide Operating Voltage Range: It operates over a wide voltage range, making it suitable for various logic levels and providing design flexibility.

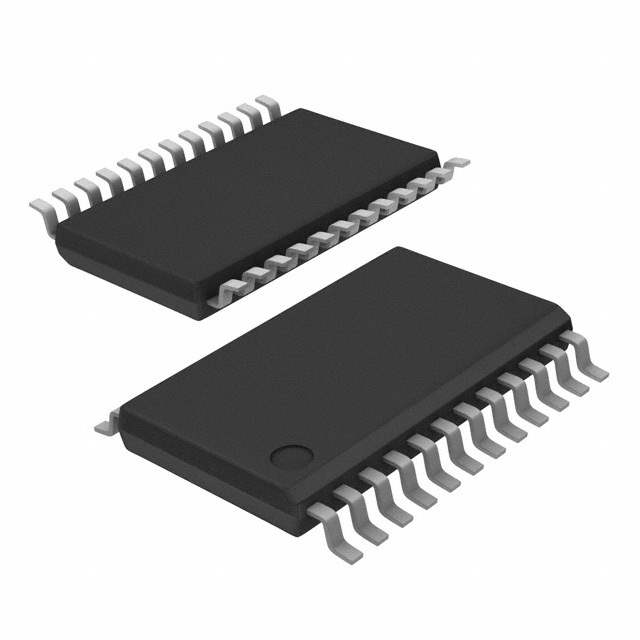

• Advanced Packaging: Packaged in a TSSOP (Thin Shrink Small Outline Package), the CDC2509BPWRG4 is optimized for space-saving on PCBs and ensures reliable thermal performance.

Applications

The versatility of the CDC2509BPWRG4 makes it an ideal choice for a range of applications, including:

• Networking equipment such as routers, switches, and hubs
• Telecommunications infrastructure
• Data storage systems
• Servers and workstations
• Industrial control systems

Technical Specifications

With its robust design and technical prowess, the CDC2509BPWRG4 boasts the following specifications:

• Supply Voltage (V<sub>CC): 3.3V ±0.3V or 5V ±0.5V
• Operating Temperature Range: -40°C to 85°C
• Output Frequency Range: Up to 133 MHz
• Package: 24-pin TSSOP

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The CDC2509BPWRG4 is no exception, undergoing rigorous testing to ensure reliability and performance that meets or exceeds industry standards.
