The CSD16340Q3T is a state-of-the-art N-Channel NexFET™ power MOSFET from Texas Instruments, designed to deliver high performance in a compact footprint. With its advanced technology, this MOSFET is an ideal choice for a wide range of power management applications.

Key Features

• Low On-Resistance: The CSD16340Q3T boasts an ultra-low on-resistance (R<sub>DS(on)) of just 5.8 mΩ at V<sub>GS = 10V, which minimizes conduction losses and enhances efficiency.
• High Continuous Drain Current: With a continuous drain current (I<sub>D) of 100 A, this MOSFET can handle high levels of current, making it suitable for demanding applications.
• Reduced Switching Losses: Fast switching speeds lead to lower switching losses, contributing to the overall efficiency of the system.

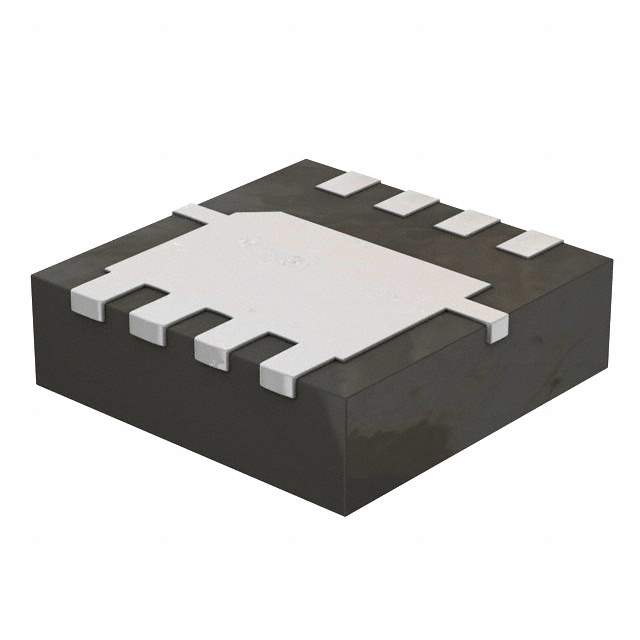

• Thermal Management: The CSD16340Q3T is encapsulated in a SON 3.3 mm × 3.3 mm plastic package that is designed to optimize power dissipation and simplify thermal management.
• Voltage Rating: It operates at a drain-to-source voltage (V<sub>DSS) of 25V, making it suitable for a variety of low voltage applications.

Applications

• DC/DC Converters
• Power Supply Load Switches
• Battery Management Systems
• Synchronous Buck Converters
• Point of Load (POL) Modules
• High Density Power Solutions

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the CSD16340Q3T is no exception. It is designed to meet stringent industry standards, ensuring long-term performance and stability in a variety of conditions.

Conclusion

The CSD16340Q3T from Texas Instruments is a robust and efficient solution for designers looking to improve power density and efficiency in their applications. Its combination of low on-resistance, high current capacity, and fast switching speeds makes it a versatile component for modern electronic designs.
