Introducing the CSD25302Q2 from Texas Instruments

The CSD25302Q2 is a cutting-edge power MOSFET designed by Texas Instruments to deliver high-efficiency power management solutions in a compact package. This product is tailored for applications that demand minimal power loss and excellent thermal performance, making it an ideal choice for modern electronic devices.

Key Features

• Low On-Resistance: The CSD25302Q2 boasts an ultra-low on-resistance (R_DS(on)) of just 25 mΩ at V_GS = 4.5 V. This low R_DS(on) ensures reduced conduction losses, enhancing the overall efficiency of the application.

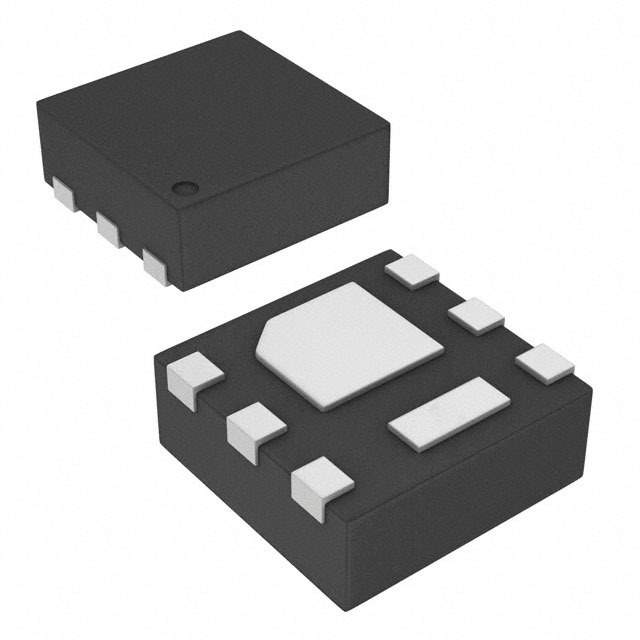

• Compact Size: Housed in a tiny 2mm x 2mm SON package, this MOSFET is designed to save valuable board space, making it perfect for space-constrained applications.
• High Continuous Drain Current: With a continuous drain current (I_D) of 18 A, the CSD25302Q2 can handle high-current applications with ease.
• Advanced Technology: Utilizing Texas Instruments' advanced power MOSFET technology, this device provides reduced gate charge (Q_G) and low total gate charge (Q_g(tot)), which translates to lower switching losses.
• Robust Thermal Performance: The CSD25302Q2 is optimized for excellent thermal performance, which is critical for maintaining reliability and longevity in high-temperature environments.

Applications

The versatility of the CSD25302Q2 allows it to be integrated into a wide range of applications. It is particularly well-suited for:

• DC/DC converters
• Power supplies for servers, telecom, and networking equipment
• Load switches
• Battery management systems
• Point-of-load (POL) modules

Thanks to its exceptional power density and efficiency, the CSD25302Q2 from Texas Instruments is a top choice for designers looking to enhance their power management systems. Its robust design ensures that it can withstand the demands of a variety of applications, delivering reliable performance in a compact form factor.

For more detailed information, including datasheets, technical documentation, and support resources, please visit the Texas Instruments official product page.
