The Texas Instruments CSD25404Q3 is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high-performance and efficiency in a compact package. This power MOSFET is well-suited for a variety of applications, including but not limited to, power management, load switching, and DC-DC conversion in computing and telecom power systems.

Key Features

• Low On-Resistance: The CSD25404Q3 boasts an ultra-low on-resistance (R<sub>DS(on)), which significantly reduces conduction losses and enhances the overall efficiency of the system it is integrated into.
• High Continuous Drain Current: With a high continuous drain current (I<sub>D), this MOSFET can handle high-current applications with ease, making it an ideal choice for power-intensive modules.

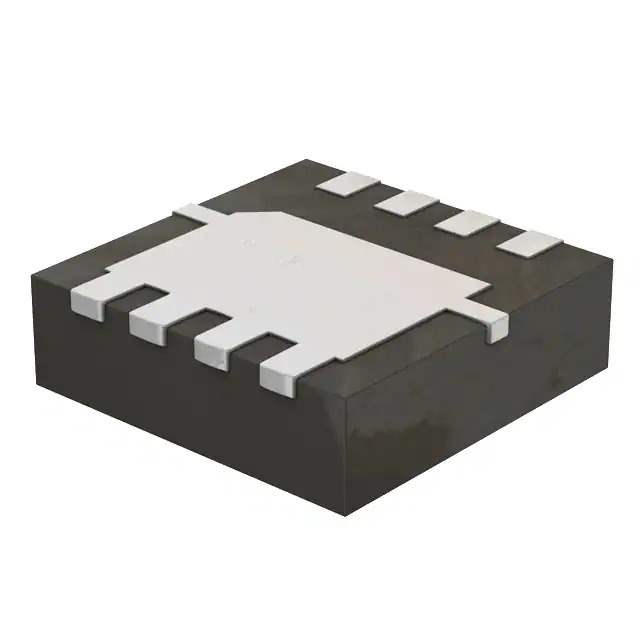

• Advanced Packaging: Enclosed in a compact 3.3mm x 3.3mm SON package with PowerPAD™, the CSD25404Q3 minimizes resistance and inductance, while maximizing thermal performance and reliability.
• Fast Switching Speed: The device is engineered for fast switching speeds, which helps reduce switching losses and improves the performance of high-frequency power circuits.
• Optimized Gate Charge: It features an optimized gate charge (Q<sub>g), which helps in reducing the power required to turn the MOSFET on and off, thereby saving energy and improving system power density.

Applications

The versatility of the CSD25404Q3 allows it to be used in a wide array of applications. It is particularly effective in synchronous buck converters, which are used in CPU power supplies, point of load (POL) modules, and other power conversion applications. Its high efficiency and thermal performance also make it suitable for server and telecom power supplies, where reliability and energy savings are critical.

Quality and Reliability

As with all Texas Instruments products, the CSD25404Q3 is manufactured to the highest quality standards, ensuring reliability and performance consistency. The device is RoHS compliant and is designed to meet the rigorous demands of industrial and commercial applications.
