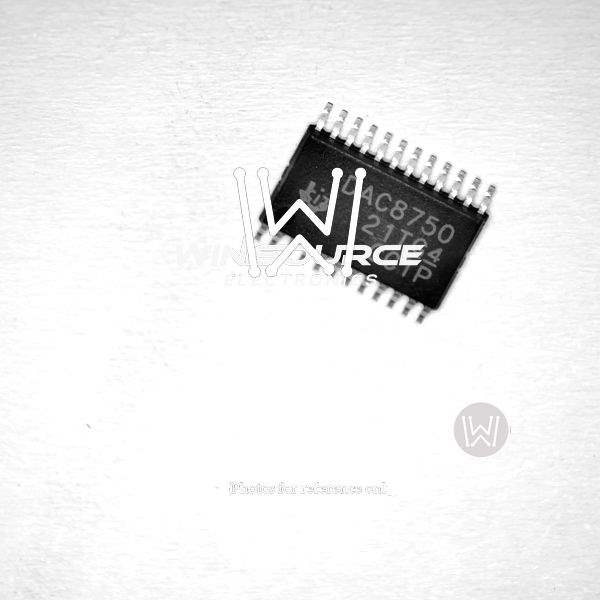

Texas Instruments DAC8750IPWP Digital-to-Analog Converter

The DAC8750IPWP is a highly integrated digital-to-analog converter (DAC) from the reputable semiconductor manufacturer, Texas Instruments (TI). This precision DAC is designed to offer outstanding performance and reliability for a wide range of industrial applications, including process control, automated test equipment, and programmable logic controllers.

The DAC8750IPWP is part of TI's extensive DAC product line, featuring a 16-bit resolution that provides high accuracy and fine control over analog outputs. It operates with a supply voltage range from 10V to 36V, or ±5V to ±18V, making it versatile for various system designs. The device includes a 4-20mA current loop driver, which is a standard for industrial communication, allowing it to directly interface with sensors and actuators in the field.

One of the key features of the DAC8750IPWP is its integrated precision reference, which eliminates the need for an external reference and simplifies the design. The on-chip reference has a low temperature coefficient, ensuring stability and accuracy over the entire industrial temperature range (-40°C to +105°C).

The device is housed in a 16-pin HTSSOP (PowerPAD) package, which not only saves board space but also enhances thermal performance. The DAC8750IPWP also includes a range of built-in diagnostic features, such as cyclic redundancy check (CRC) error checking, to ensure robust data communication and system integrity.

Communicating with the DAC8750IPWP is straightforward, thanks to its SPI-compatible serial interface, which supports daisy-chaining in multi-DAC systems. This simplifies the connection to microcontrollers or digital signal processors and reduces the number of required I/O lines.

Overall, the Texas Instruments DAC8750IPWP is a top choice for designers who require a high-performance, reliable DAC solution for their industrial applications. Its combination of precision, integration, and ease of use makes it a valuable component in any precision analog output system.

For more detailed specifications and application guidance, designers should refer to the official datasheet and product support resources available on the Texas Instruments website.
