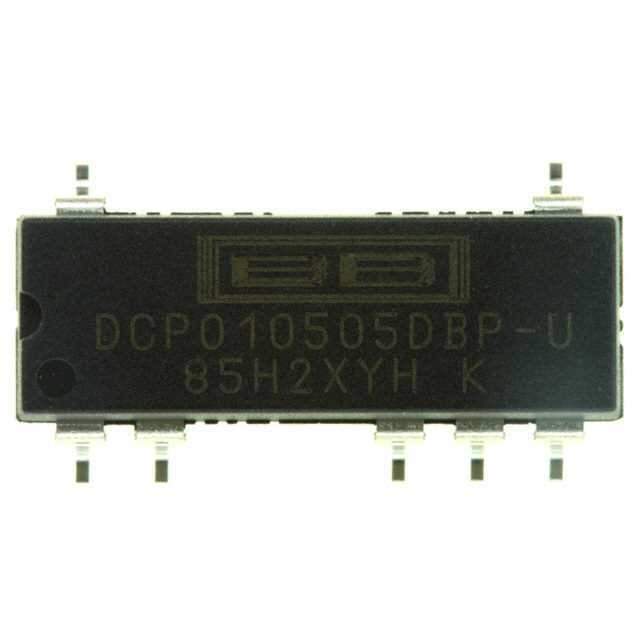

DCP010505DBP-UE4 Real Image
Same model may have multiple batches, images only for reference.

DCP010505DBP-UE4

Part No DCP010505DBP-UE4
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED +/-5V 0.1A 7SOP
Datasheet
DCP010505DBP-UE4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 81%
Power (Watts) - Max 220mW
Win Source Part Number 013847-DCP010505DBP-UE4
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP010505DBP-UE4 CAD Model

Description

Product Overview

The DCP010505DBP-UE4 offers an outstanding solution for power isolation and conversion needs, blending technical excellence with cost-effective design approaches suitable for rapid development phases.

Features and Benefits

  • Excellent thermal performance
  • Reliable isolation capability
  • Cost-effective design for budget-conscious projects
  • Support for both commercial and industrial temperature ranges

Applications and Projects

  • Power monitoring systems
  • Distributed power architecture
  • Safety-critical industrial environments
  • Home automation technologies
  • Instrumentation and measurement tools

This model is particularly beneficial for projects where management of thermal conditions and budget efficiency is crucial.
