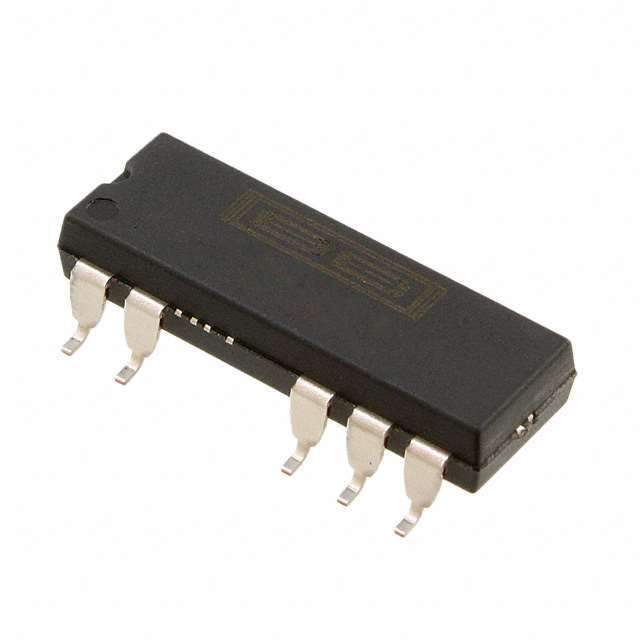

DCP010515BP-U/700

Part No DCP010515BP-U/700
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 15V 67MA 7SOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Reel(TR)
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 82%
Power (Watts) - Max 510mW
Win Source Part Number 013851-DCP010515BP-U/700
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DCP010515BP-U/700 CAD Model

Description

DCP010515BP-U/700 High-Efficiency Converter

The DCP010515BP-U/700 power module stands out with its exceptional efficiency and reliability. It is crafted to address the demands of high-precision electronic applications, making it indispensable for engineers and developers.

  • Applications:
  • Advanced Wireless Communication
  • Renewable Energy Systems
  • Medical Devices and Equipment
  • Smart Grid Applications
  • Features and Benefits:
  • Enhanced Efficiency: Optimized design for minimal energy loss.
  • Superior Voltage Regulation: Ensures consistency and precision.
  • Extended Temperature Range: Suitable for various environmental conditions.
  • Noise Reduction: Minimizes electromagnetic interference for clearer signals.
  • Robust Construction: Built to withstand mechanical stress and vibration.

The DCP010515BP-U/700 is a perfect choice for projects requiring top-tier energy conversion and voltage regulation. Its robust and adaptable features cater to advanced systems, ensuring top-notch performance and reliability.
