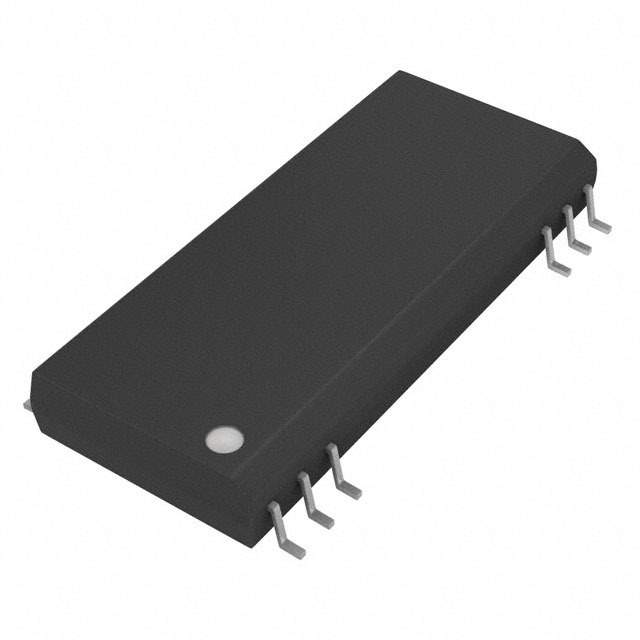

DCP020509U Real Image
Same model may have multiple batches, images only for reference.

DCP020509U

Part No DCP020509U
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 9V 222MA 12SOP
Datasheet
DCP020509U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP02
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Current - Output (Max) 222mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP
Mounting Style SMD/SMT
Package 12-SOIC (0.295", 7.50mm Width)
Size / Dimension 0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 82%
Power (Watts) - Max 207mW
Win Source Part Number 013860-DCP020509U
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP020509U CAD Model

Description

DCP020509U

The DCP020509U is a highly efficient, isolated DC/DC converter offering superior performance for a variety of applications. Designed for seamless integration, it provides a reliable power supply in diverse environments.

Features and Benefits

  • High Efficiency: Offers excellent power conversion efficiency, reducing energy consumption.
  • Isolated Output: Guarantees safety and prevents ground loops.
  • Compact Design: Small form factor allows easy incorporation into space-constrained projects.
  • Wide Temperature Range: Operates efficiently in various environmental conditions.

Applications

  • Telecommunications Equipment
  • Industrial Automation Systems
  • Instrumentation and Testing Equipment
  • Embedded Systems
Additional Information

This converter is suitable for both commercial and industrial applications, ensuring long-term reliability and robust performance.
