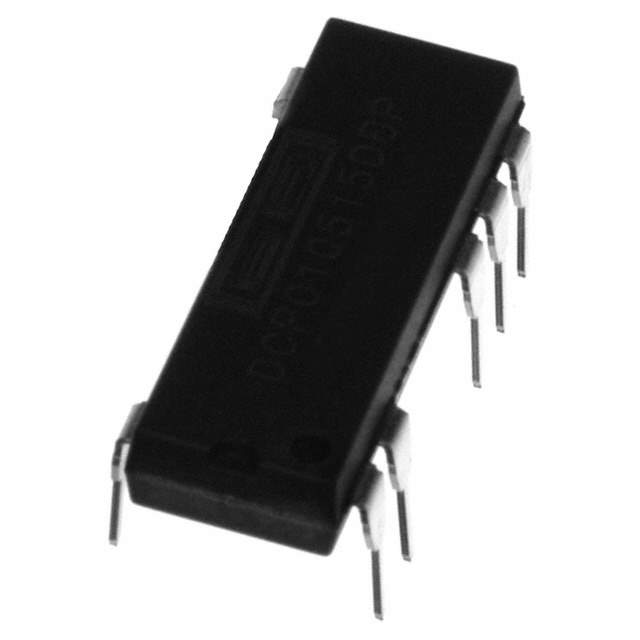

Overview of Texas Instruments DCP021205P

The Texas Instruments DCP021205P is a highly efficient, miniaturized isolated DC-DC converter module that provides a fixed output voltage of 5V from an input voltage range of 10.8V to 13.2V. This product is part of the DCP02 series, which is known for its exceptional performance in terms of isolation and regulation, making it suitable for a wide range of applications, including industrial, telecom, and healthcare sectors.

Key Features

• Isolation: The DCP021205P offers 1500Vrms of isolation for 1 minute, which ensures that the input and output are electrically separated, providing safety and noise immunity for sensitive applications.
• Regulated Output: The output voltage is precisely regulated, ensuring a stable 5V supply regardless of variations in the input voltage within the specified range.
• Power Efficiency: With its high power conversion efficiency, the module ensures minimal power loss, making it an energy-efficient choice for powering electronic circuits.
• Compact Size: The module's small footprint allows for easy integration into space-constrained designs without compromising on performance.
• Temperature Performance: The DCP021205P operates over an industrial temperature range, making it reliable in a variety of environmental conditions.

Applications

The versatility of the DCP021205P makes it suitable for a broad array of applications. It is particularly useful in situations where isolation is critical to protect sensitive equipment or to comply with safety standards. Common applications include:

• Isolated sensor interfaces
• Industrial control systems
• Data acquisition systems
• Telecommunication equipment
• Medical equipment with stringent safety requirements

Product Specifications

Overall, the Texas Instruments DCP021205P DC-DC converter is a reliable and efficient solution for applications requiring a regulated and isolated power supply within a compact design envelope.
