Same model may have multiple batches, images only for reference.

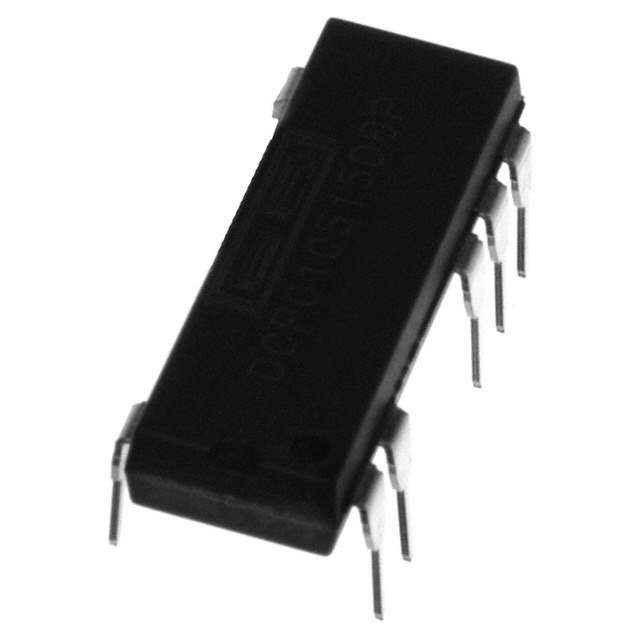

DCP021515P Real Image
Same model may have multiple batches, images only for reference.

DCP021515P

Part No DCP021515P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 15V 133MA 7DIP
Datasheet
DCP021515P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP02
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 15V
Current - Output (Max) 133mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP
Mounting Style Through Hole
Package 14-DIP (0.300", 7.62mm) (7 Leads)
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 88%
Power (Watts) - Max 180mW
Win Source Part Number 145161-DCP021515P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP021515P CAD Model

Description

DCP021515P Isolated DC-DC Converter

The DCP021515P is a professional-grade isolated DC-DC converter designed for superior power management across various electrical setups. Delivering 1.5W of power, it ensures optimal performance with 1500V of isolation, functional across multiple industrial and commercial uses.

Features and Benefits

  • Capability of 1.5W output enhances power handling.
  • High isolation of 1500VDC ensures safety and system integrity.
  • Durable DIP package accommodates standard assembly procedures.
  • Supports wide operating temperatures for industrial environment applicability.

Applications

  • Instrumentation systems
  • Networking equipment
  • Automation controls
  • Medical devices

This converter is integral to high-performance applications requiring steadfast power conversion.
