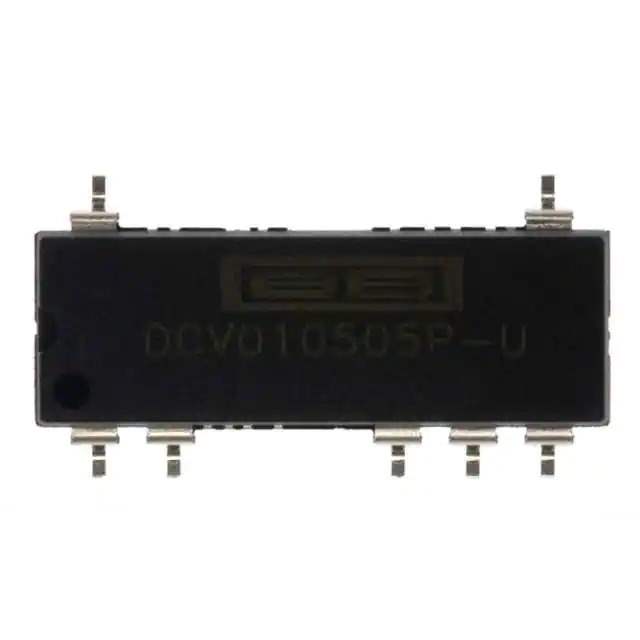

Product Overview: DCV010505P-U from Texas Instruments

The DCV010505P-U is a highly reliable, compact, and efficient DC-DC converter module manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This miniature, isolated power module is designed to provide consistent and regulated power in a range of electronic applications, where space is at a premium and isolation is necessary for operational integrity and safety.

Key Features

• Input Voltage Range: The device operates with an input voltage range of 4.5V to 5.5V, making it ideal for standard 5V supply rails.
• Output Voltage: The DCV010505P-U provides a single, regulated output voltage of 5V, which is critical for consistent performance in sensitive electronics.
• Isolation: With an isolation rating of 1 kV RMS, this module offers excellent electrical isolation between input and output, which is essential for noise-sensitive applications and provides user safety.
• Power Rating: It can deliver up to 1W of output power, making it suitable for a wide range of low-power applications.
• Package: The device comes in a compact 7-pin DIP package, allowing for easy integration into various electronic systems without taking up significant board space.
• Efficiency: The DCV010505P-U boasts high efficiency, which minimizes power loss and heat generation within the system.

Applications

The DCV010505P-U is versatile and can be used in multiple applications, including but not limited to:

• Industrial control systems
• Data acquisition systems
• Telecommunications equipment
• Isolated sensor interfaces
• Test and measurement equipment

Quality and Reliability

As with all Texas Instruments products, the DCV010505P-U is built to high-quality standards, ensuring reliability and performance consistency. TI's commitment to excellence means that this DC-DC converter is a dependable choice for engineers and designers looking to integrate isolated power solutions into their projects.

For detailed technical specifications, application notes, and support documentation, interested parties are encouraged to visit the official Texas Instruments website or contact their local TI sales representative.
