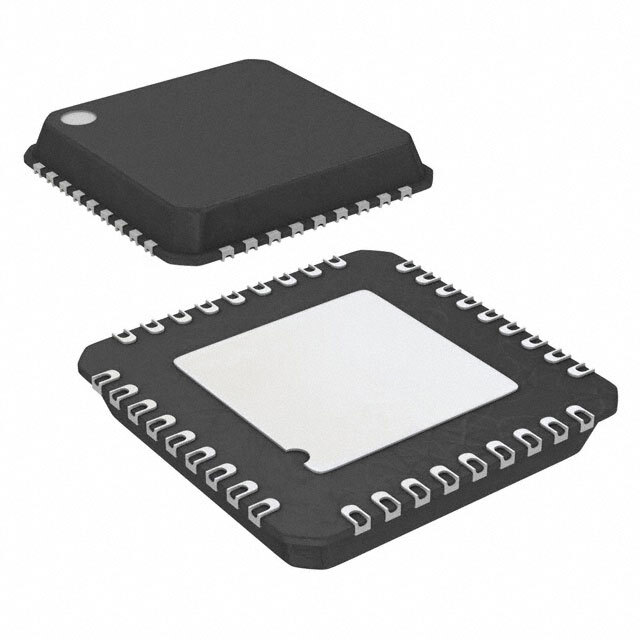

Same model may have multiple batches, images only for reference.

DP83TC811RWRNDTQ1

Name: DP83TC811RWRNDTQ1
Brand: Texas Instruments
SKU: 917200
Availability: InStock
Rating: 5 (993 reviews)

Part No	DP83TC811RWRNDTQ1
Manufacturer	Texas Instruments
Catalog	Interface - Drivers, Receivers, Transceivers
Description	IC TRANSCEIVER 2/2 36VQFN
Datasheet	DP83TC811RWRNDTQ1 Datasheet
Sample
Rohs State	Need to verify
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $17.0132

Quantity

Unit Price

Ext. Price

$24.3050

$72.915

$19.9420

$119.652

$19.3190

$154.552

11+

$18.6960

$205.656

14+

$18.0730

$253.022

19+

$16.2030

$307.857

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 13,820 pieces

MOQ: 3 pcs

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Categories	Integrated Circuits (ICs)
Estimated Pruduction Lead Time	34 Weeks
Features	2/2 Transceiver - IEEE 802.3 36-VQFN (6x6)
Manufacturer	Texas Instruments
Series	Automotive, AEC-Q100
Package	Reel - TR
Operating Temperature Range	-40°C ~ 125°C (TA)
Mounting	Surface Mount, Wettable Flank
Package	36-VFQFN Exposed Pad
Case / Package	36-VQFN (6x6)
Family Name	DP83TC811
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Part Number	296-50568-1, 296-50568-2, DP83TC811RWRNDTQ1-ND, 296-50568-6
Quantity per package	250
Fake Threat In the Open Market	89 pct.
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	917200-DP83TC811RWRNDTQ1

Description

Product Overview: DP83TC811RWRNDTQ1

The DP83TC811RWRNDTQ1 is a robust, automotive-grade, low-power physical layer transceiver designed by Texas Instruments (TI) for use in automotive and industrial applications. This state-of-the-art device supports the IEEE 802.3bw-2015 specification and is optimized for 100BASE-T1, which enables 100 Mbps Ethernet over a single twisted pair cable.

The DP83TC811RWRNDTQ1 transceiver is suitable for a wide range of applications, including advanced driver assistance systems (ADAS), infotainment, telematics, and camera modules, among others. Its compact design and exceptional performance make it ideal for next-generation in-vehicle networks that require high-speed data transmission and robust communication links.

Key Features

Single Pair Ethernet: Allows for 100 Mbps data transmission over a single twisted pair, reducing cable weight and cost.
Low Power Consumption: Engineered for energy efficiency, which is critical for battery-powered and energy-conscious systems.
Integrated Diagnostics: Features built-in diagnostic capabilities for advanced cable diagnostics, temperature monitoring, and signal quality monitoring, enhancing system reliability.
EMI Mitigation: Incorporates sophisticated techniques to reduce electromagnetic interference, an essential feature for compliance with automotive electromagnetic compatibility (EMC) requirements.
Temperature Range: Designed to operate over the automotive temperature range, ensuring reliable performance under extreme conditions.
Wake-Up and Sleep Modes: Supports Wake-Up and Sleep modes to facilitate intelligent power management in automotive networks.

The DP83TC811RWRNDTQ1 is available in a compact 24-pin VQFN package, making it suitable for space-constrained applications. With its advanced features and compliance with automotive standards, this transceiver from TI represents a reliable solution for high-speed communication in modern vehicles, contributing to safer and more connected driving experiences.

For more information, technical specifications, and support documentation, please visit the Texas Instruments official product page.
