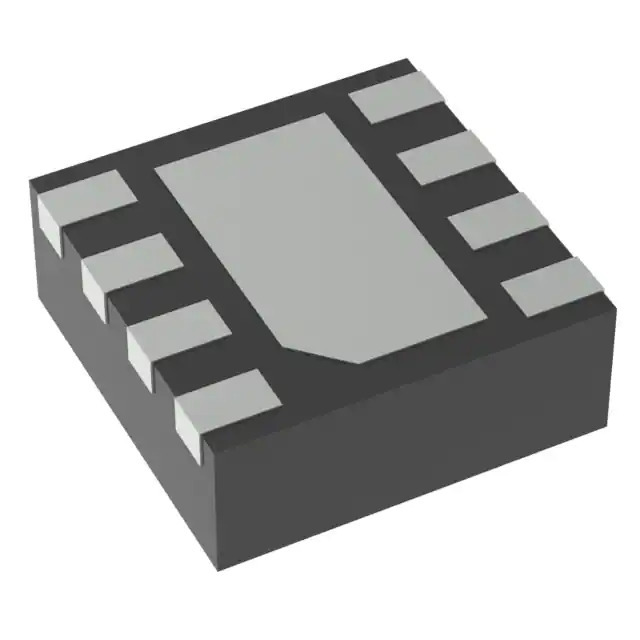

The DRV8212PDSGR is a cutting-edge motor driver integrated circuit (IC) designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This motor driver is specifically engineered to provide a compact, efficient, and versatile solution for a wide range of motor driving applications. It is well-suited for driving brushed DC motors, stepper motors, and other similar loads.

Key Features

• Integrated H-Bridge: The DRV8212PDSGR incorporates a fully integrated H-bridge that can efficiently control the direction and speed of a DC motor.
• High Output Drive Capability: This motor driver is capable of delivering an output current of up to 3.5A, making it suitable for driving a broad range of motor sizes.
• Low RDS(on) MOSFETs: The device includes low on-resistance power MOSFETs, which minimize heat dissipation and increase efficiency.
• Protection Features: It comes with a variety of built-in protection features, including overcurrent, thermal shutdown, and under-voltage lockout, ensuring safe and reliable operation.
• Adjustable Current Regulation: The DRV8212PDSGR allows for adjustable current regulation, providing users with control over the motor's torque and power consumption.

Applications

The versatility of the DRV8212PDSGR makes it an ideal choice for a multitude of applications, including but not limited to:

• Battery-powered toys
• Home appliances
• Printers and office automation machines
• Small industrial equipment

Technical Specifications

• Supply Voltage: 4.5V to 28V
• Output Current (Continuous): Up to 3.5A
• Package: The DRV8212PDSGR is offered in a HTSSOP package, which is ideal for space-constrained applications.

In conclusion, the DRV8212PDSGR from Texas Instruments stands out as a robust and flexible motor driver solution that can meet the needs of a diverse array of motor control applications. Its combination of power, precision, and protection features, all packaged in a compact form factor, makes it an excellent choice for designers looking to optimize their motor control systems.
