Same model may have multiple batches, images only for reference.

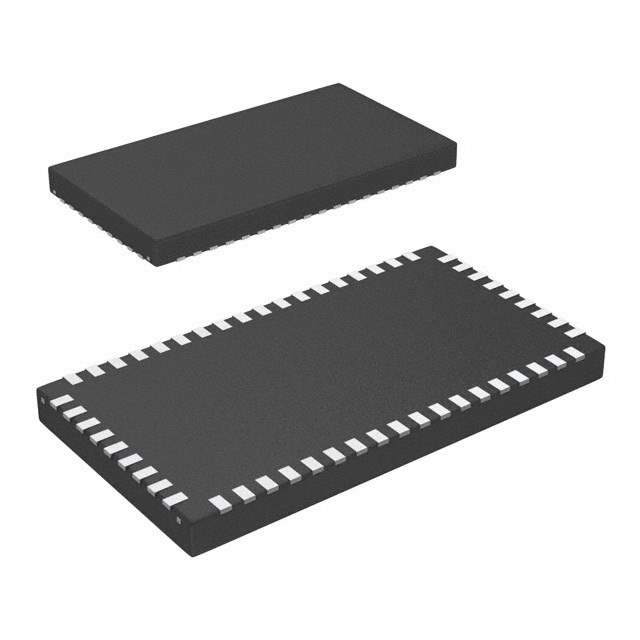

DS50PCI402SQ/NOPB Real Image
Same model may have multiple batches, images only for reference.

DS50PCI402SQ/NOPB

Part No DS50PCI402SQ/NOPB
Manufacturer Texas Instruments
Catalog Interface - Signal Buffers, Repeaters, Splitters
Description IC REDRIVER PCIE 8CH 54WQFN
Datasheet
DS50PCI402SQ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Buffer, ReDriver
Applications PCIe
Input CML
Output CML
Data Rate (Max) 5Gbps
Number of Channels 8
Delay Time 200ps
Signal Conditioning Input Equalization, Output De-Emphasis
Capacitance - Input 10pF
Supply Voltage - Operating 2.375 V to 2.625 V
Temperature Range - Operating -10°C to 85°C
Case / Package 54-WQFN (10x5.5)
Win Source Part Number 080752-DS50PCI402SQ/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DS50PCI402SQ/NOPB CAD Model

Description

DS50PCI402SQ/NOPB Detailed Description

The DS50PCI402SQ/NOPB offers exceptional performance as a PCI Express redriver, designed to extend and optimize signal transmission over longer distances. This component ensures minimal data loss, addressing the needs of sophisticated electronic infrastructures.

  • Applications: Enterprise servers, Storage systems, Intelligent data switchboards, Digital video processing
  • Features & Benefits: High signal gain, Compatibility with multiple PCIe standards, Energy-efficient operation, Durable and reliable in harsh environments

    • This product ensures optimal data integrity and speed, facilitating the design of next-generation computing systems while adhering to environmental and performance standards.
