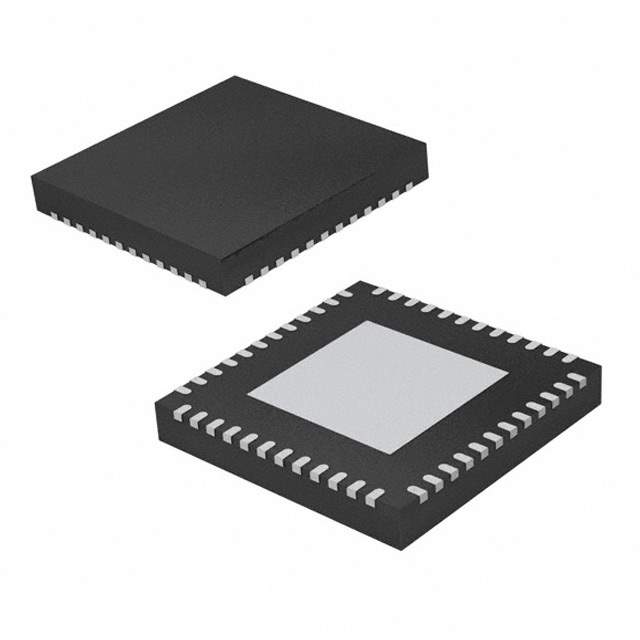

Product Overview: DS90UH925QSQE/NOPB

The DS90UH925QSQE/NOPB is a state-of-the-art serializer from Texas Instruments (TI), designed to provide a robust and efficient solution for transmitting high-speed digital data over a long-distance point-to-point connection. This innovative component is part of TI's FPD-Link III family, which is renowned for its ability to transmit full-duplex data, including high-definition video and control signals, over a single twisted pair cable.

Key Features

• High-Speed Data Transmission: The DS90UH925QSQE/NOPB supports high-speed data rates up to 3.072 Gbps, making it ideal for transmitting uncompressed video and audio data in automotive infotainment systems, driver assistance cameras, and other applications requiring high bandwidth.
• FPD-Link III Technology: Leveraging TI's FPD-Link III technology, this serializer ensures reliable data transmission with embedded clock signals, reducing the number of wires needed for connectivity and simplifying system design.
• Advanced Diagnostics: It includes built-in diagnostic features that enable system designers to monitor link status, input lock, and other critical parameters, ensuring the system's integrity and aiding in troubleshooting.
• EMI Mitigation: The device incorporates techniques to minimize electromagnetic interference (EMI), such as spread spectrum clocking, making it suitable for use in electrically noisy environments.
• Automotive-Qualified: As an automotive-qualified component, the DS90UH925QSQE/NOPB meets stringent industry standards for reliability and performance under harsh conditions.

Applications

The DS90UH925QSQE/NOPB is specifically designed for use in automotive applications, but its robust feature set makes it applicable in a variety of industries. Common applications include:

• Automotive infotainment and navigation systems
• Driver assistance systems such as rearview and surround-view cameras
• Industrial video transmission systems
• High-definition video signage and displays

Conclusion

The DS90UH925QSQE/NOPB from Texas Instruments represents a powerful solution for high-speed data transmission in a compact and reliable package. Its advanced features, combined with the proven FPD-Link III technology, make it an excellent choice for designers seeking to create sophisticated systems that require long-distance, high-bandwidth data transmission with a minimal wiring footprint.
