Product Overview: DS99R105SQ/NOPB

The DS99R105SQ/NOPB is a high-performance serializer from Texas Instruments, designed to meet the rigorous demands of automotive and industrial video applications. This robust component is part of the Channel Link III series, which provides a reliable interface solution for high-resolution video data transfer over a single differential pair.

Key Features

• High-Speed Data Transfer: The DS99R105SQ/NOPB is capable of serializing parallel RGB video data to a high-speed serialized interface that can run at up to 3.4 Gbps, ensuring smooth and clear video transmission.
• Embedded Clock: With an embedded clock in the data stream, the need for a separate clock channel is eliminated, reducing the number of wires needed for transmission and simplifying system design.
• Adaptive Equalization: The device includes adaptive equalization features, which enable it to maintain signal integrity over long cable distances, making it ideal for in-vehicle or industrial environments where extended reach is necessary.
• Color Depth: It supports a wide range of color depths, including 18-bit, 24-bit, and 36-bit RGB with additional support for 18-bit YCbCr 4:2:2 video formats.
• Power Management: The DS99R105SQ/NOPB comes with advanced power management capabilities, including an automatic power-down feature when the input signal is lost, contributing to energy efficiency.

Applications

The DS99R105SQ/NOPB is primarily used in automotive infotainment systems, driver assistance cameras, and industrial machine vision systems. Its robust design and advanced features make it suitable for applications where high-resolution video transmission is critical, and reliability is non-negotiable.

Quality and Reliability

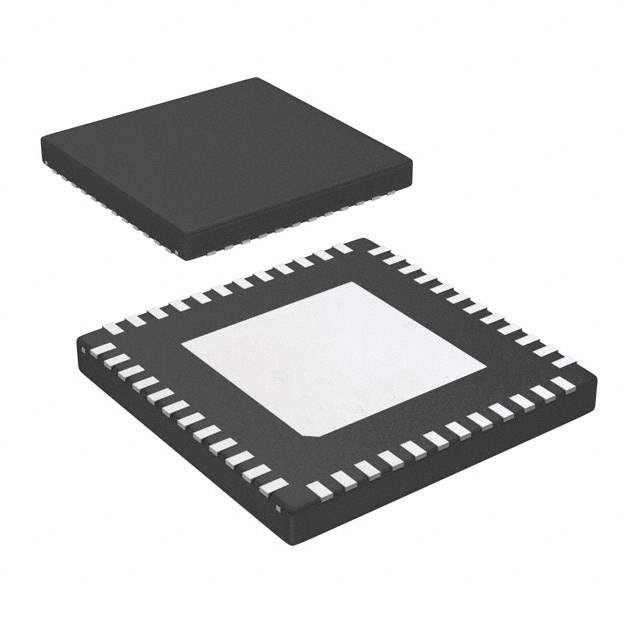

As with all Texas Instruments products, the DS99R105SQ/NOPB is designed to meet the highest quality and reliability standards. It is available in a 48-pin QFN package and is AEC-Q100 qualified, making it suitable for automotive applications subjected to harsh environments.

This serializer is an essential component for designers looking to create sophisticated video systems that require high-speed data transfer, minimal cabling, and maximum reliability. Its integration into video systems ensures that the final products deliver superior performance and meet the expectations of the most demanding video applications.
