The HD3SS3212RKSTQ1 is a high-performance, bidirectional switch from Texas Instruments, designed for USB Type-C and Power Delivery applications. This switch is an integral component for modern electronic devices that require efficient power management and data transfer capabilities.

Key Features

• USB Type-C Compatibility: The HD3SS3212RKSTQ1 is tailored to work seamlessly with the USB Type-C specification, ensuring a reliable connection for USB 3.1 Gen 1 and Gen 2 data rates.
• Power Delivery Support: This device supports USB Power Delivery (PD) for higher power charging, making it suitable for a wide range of devices including smartphones, laptops, and tablets.
• High-Speed Data Transfer: It enables high-speed data transfer, with a capability to handle up to 10 Gbps, providing efficient performance for data-intensive applications.
• Bidirectional Operation: The switch can operate in both directions, allowing for reversible plug orientation and cable direction, which adds to the user convenience and system robustness.
• Low Power Consumption: Designed with power efficiency in mind, the HD3SS3212RKSTQ1 maintains low power consumption, which is critical for battery-operated devices.
• Robust Protection Features: It includes protection features such as over-voltage and under-voltage lockout, over-temperature protection, and electrostatic discharge (ESD) protection.

Applications

The HD3SS3212RKSTQ1 is versatile and can be used in a variety of applications, including:

• Smartphones and Tablets
• Notebooks and Ultrabooks
• Desktops and Docking Stations
• Monitors and Peripherals

Technical Specifications

Some technical specifications of the HD3SS3212RKSTQ1 include:

• Supply Voltage: 3.3V ±10%
• Operating Temperature Range: -40°C to 85°C

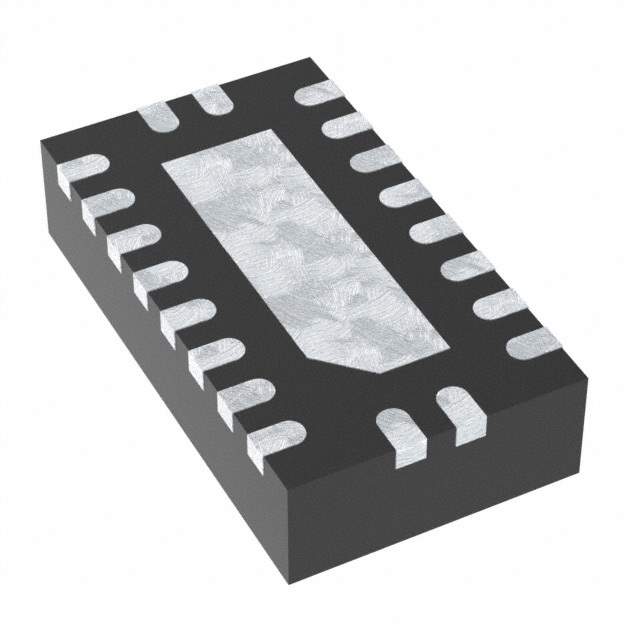

• Package: 32-pin VQFN
• Compliance: Meets or exceeds the requirements of the USB Implementers Forum Specification for USB Type-C.

With its robust set of features and compliance with USB Type-C and USB PD standards, the HD3SS3212RKSTQ1 from Texas Instruments is an excellent choice for designers looking to integrate a reliable and efficient switch solution into their USB Type-C enabled devices.
