Introducing the HD3SS3220IRNHR USB Type-C DRP Port Controller

The HD3SS3220IRNHR is a cutting-edge USB Type-C Dual Role Port (DRP) controller designed by Texas Instruments to provide a flexible and robust solution for USB Type-C port management. This advanced integrated circuit is engineered to cater to the needs of both upstream-facing port (UFP) and downstream-facing port (DFP) applications, ensuring seamless operation in devices that require reversible plug orientation and cable direction.

Key Features:

• USB Type-C Compliance: The HD3SS3220IRNHR adheres to the latest USB Type-C specifications, ensuring compatibility with a wide range of devices and systems.
• DRP Functionality: As a Dual Role Port controller, it effortlessly switches between UFP and DFP roles, providing versatility in connection scenarios.
• Power Delivery: It supports USB Power Delivery (PD) for higher power capabilities, allowing devices to both supply and receive power up to 100W, depending on the system design.
• VCONN Power Support: The device can supply VCONN power required for electronically marked cables, enhancing the functionality of active cables.

Applications:

The HD3SS3220IRNHR is suitable for a variety of applications that leverage the USB Type-C interface. These include, but are not limited to:

• Notebooks and desktop computers
• Smartphones and tablets
• Docking stations and monitors
• Power adapters and chargers
• Portable and wearable devices

Technical Specifications:

The device operates over a wide supply voltage range and features low-power states to conserve energy when not in active use. It is designed with built-in protections such as over-voltage and under-voltage lockout, ensuring device safety and longevity.

Package and Availability:

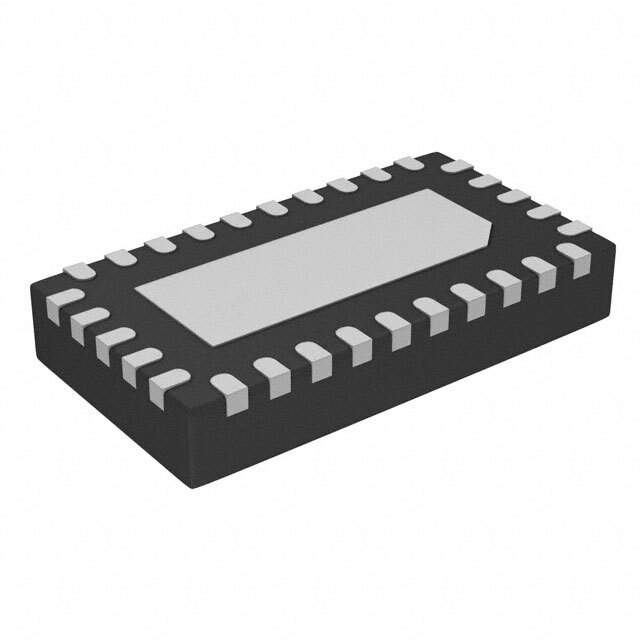

The HD3SS3220IRNHR comes in a compact QFN package, making it suitable for space-constrained applications. Texas Instruments provides comprehensive support, including detailed datasheets, application notes, and design resources to facilitate integration into your products.

With its robust design and advanced features, the HD3SS3220IRNHR from Texas Instruments stands as an essential component for any USB Type-C implementation, delivering reliability and performance for modern electronic devices.
