The Texas Instruments HD3SS3411IRWAR is a high-performance, low-power, bidirectional switch designed to support USB 3.1 Gen 1 (5 Gbps) and DisplayPort 1.4 (HBR2) signals. It is an essential component for developers and manufacturers looking to create cutting-edge devices with high-speed data and video transfer capabilities.

Key Features

• Compatibility: The HD3SS3411IRWAR is compatible with USB Type-C and DisplayPort Alt Mode, making it an ideal choice for a wide range of applications including laptops, tablets, smartphones, and docking stations.
• High-Speed Performance: With support for USB 3.1 Gen 1 at 5 Gbps, this switch is designed for rapid data transfer, ensuring devices can handle large data loads with ease.
• DisplayPort Support: The device supports DisplayPort 1.4 (HBR2), which is capable of driving 4K resolution displays, providing crystal-clear video quality for high-end multimedia experiences.
• Low Power Consumption: Designed with efficiency in mind, the HD3SS3411IRWAR maintains low power consumption, making it suitable for battery-powered devices where power management is critical.
• Multi-Switch Configuration: It features two differential channels capable of switching two SuperSpeed USB lanes or four high-bit-rate DisplayPort lanes, providing flexibility in design and application.

Applications

The versatility of the HD3SS3411IRWAR allows it to be used in a variety of devices and systems. It is particularly well-suited for:

• USB Type-C docking stations and monitors
• Portable devices with USB Type-C connectivity
• High-resolution DisplayPort video interfaces
• Devices requiring switching between USB and DisplayPort modes

Technical Specifications

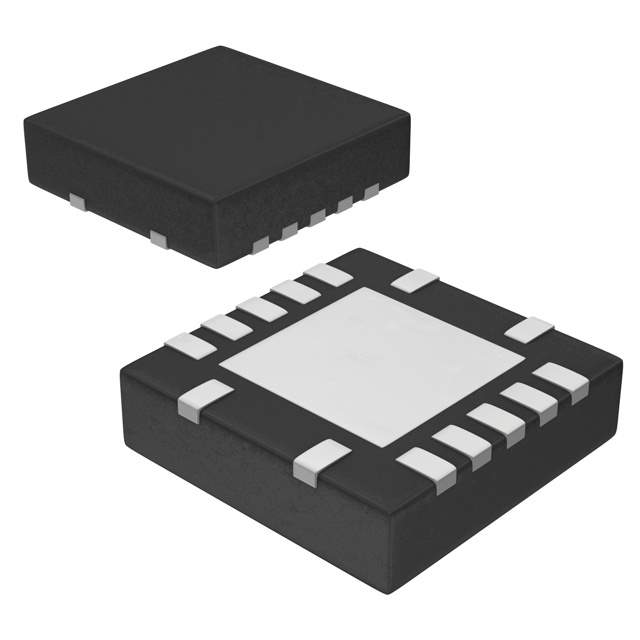

The HD3SS3411IRWAR operates over a wide temperature range and comes in a compact QFN package. It is designed to meet the rigorous standards set by Texas Instruments, ensuring reliability and performance for critical applications.

Conclusion

For developers and manufacturers in need of a reliable and high-performance USB and DisplayPort switching solution, the Texas Instruments HD3SS3411IRWAR offers a blend of speed, power efficiency, and versatility. Its support for the latest standards in USB and DisplayPort technology makes it a forward-looking choice for any modern electronic device.
