Product Overview: INA212BQDCKRQ1 from Texas Instruments

The INA212BQDCKRQ1 is a high-precision, automotive-grade current sense amplifier designed by Texas Instruments to meet the rigorous demands of the automotive industry. This device is specifically tailored for current measurement applications, offering a unique blend of accuracy, reliability, and performance that is ideal for a wide range of automotive systems, including motor control, battery management, and power supply monitoring.

Key Features

• High Accuracy: The INA212BQDCKRQ1 boasts a low offset voltage and high accuracy, ensuring precise current measurement across its operating range. This translates to better performance and efficiency in automotive applications.
• Wide Common-Mode Range: With an extended common-mode voltage range, this current sense amplifier is capable of monitoring shunt voltages in systems with high common-mode voltages, making it versatile for various automotive electrical environments.
• Low Quiescent Current: The device features a low quiescent current, which minimizes power consumption when the vehicle is in idle mode, contributing to overall energy efficiency.
• Automotive Grade: As a Q1 device, the INA212BQDCKRQ1 complies with the stringent quality standards required for automotive applications, ensuring robust performance under harsh conditions.

Applications

• Electric and Hybrid Vehicles: Battery management systems can benefit from the precise current sensing capabilities of the INA212BQDCKRQ1, enabling more accurate fuel gauging and battery health monitoring.
• Motor Control: The device can be used in motor control circuits to monitor the current flow, providing critical feedback for performance optimization and protection.
• Power Management: Ideal for use in power supply systems, the INA212BQDCKRQ1 helps in detecting overcurrent conditions and ensuring the reliability of the power distribution network within the vehicle.

Package and Reliability

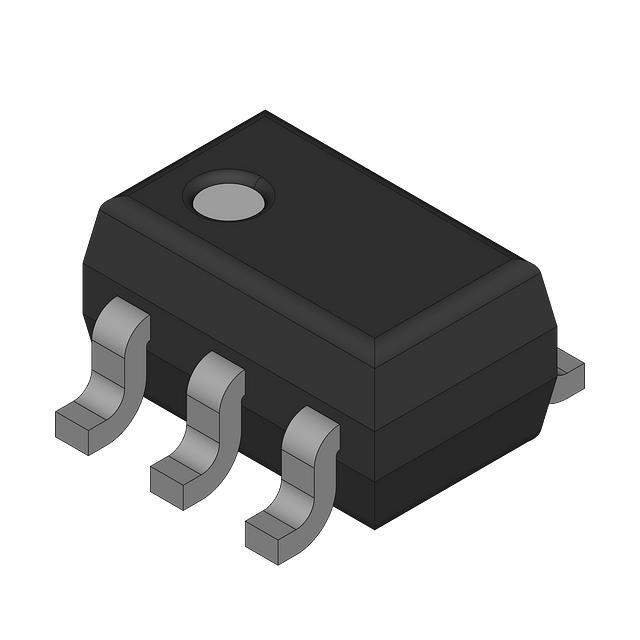

The INA212BQDCKRQ1 comes in a compact, surface-mount SC-70 package, which is well-suited for space-constrained automotive applications. Its construction and packaging are designed for high durability and resistance to thermal and mechanical stresses typically encountered in automotive environments.

In summary, the INA212BQDCKRQ1 from Texas Instruments is an essential component for automotive manufacturers and designers looking for a reliable, high-performance current sense solution. Its precision, robustness, and efficiency make it a top choice for integrating into next-generation automotive systems.
