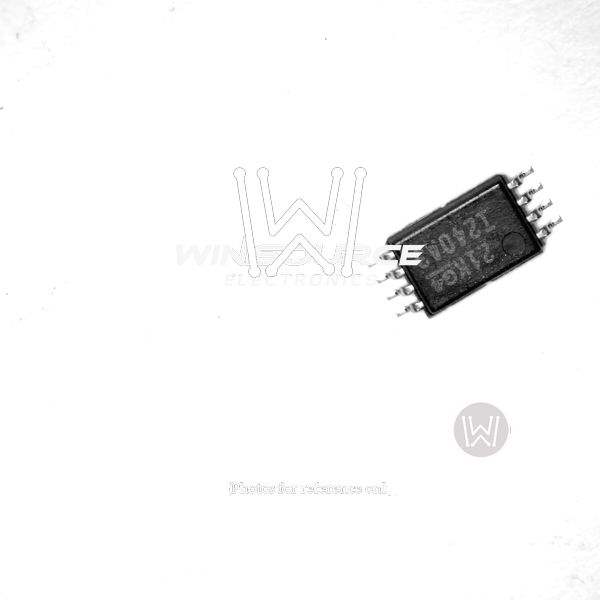

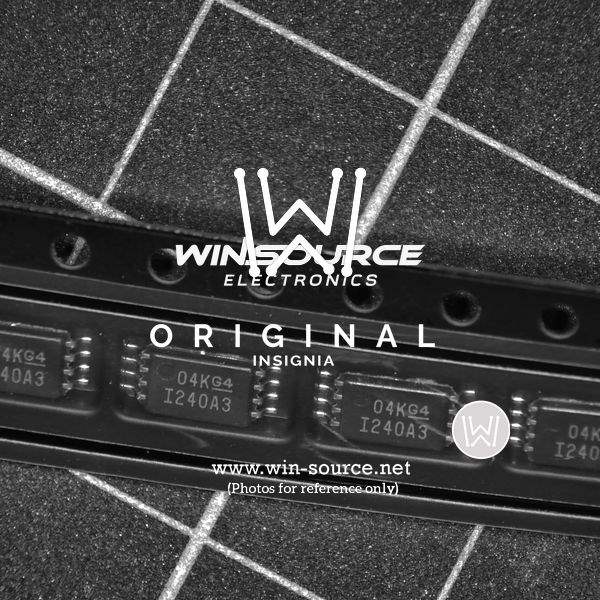

Overview of Texas Instruments INA240A3PWR

The INA240A3PWR is a precision current-sensing amplifier from Texas Instruments, designed for a wide range of applications, including motor control, battery management, overcurrent protection, and power management systems. This device is part of the INA240 series, which is known for its high accuracy and low offset voltage, making it an ideal choice for precise current measurement in both high-side and low-side configurations.

Key Features

• High Accuracy: The INA240A3PWR offers an impressive gain error of only ±0.1%, ensuring precise current measurements across its operating range.
• Low Offset Voltage: With an offset voltage as low as ±50 µV, this amplifier minimizes error contributions in current-sensing applications.
• Wide Common-Mode Range: It operates over a common-mode voltage range of -4V to +80V, which is suitable for various applications, including those involving high voltage systems.
• Multiple Gain Options: The device comes in four fixed-gain versions (20V/V, 50V/V, 100V/V, and 200V/V), with the INA240A3PWR being the 100V/V variant, offering flexibility in design.
• High Bandwidth: It provides a bandwidth of up to 400 kHz, allowing for fast response times in dynamic systems.
• Robust Design: The INA240A3PWR is designed to withstand transient events and is specified for operation from -40°C to +125°C, making it suitable for harsh environments.

Applications

The INA240A3PWR is commonly used in applications that require accurate and reliable current monitoring. These include:

• Automotive systems such as electric power steering, battery management, and DC-DC converters.
• Industrial applications, including motor drives, inverters, and power supplies.
• Telecommunications equipment where power efficiency and management are crucial.
• Energy systems, such as solar inverters and energy storage systems.

Package and Reliability

The INA240A3PWR is offered in a space-saving 16-pin TSSOP (Thin Shrink Small Outline Package) with PowerPAD™. The PowerPAD™ feature ensures excellent thermal performance, which is critical for maintaining reliability and longevity in high-power applications. With its robust design and comprehensive feature set, the INA240A3PWR is a go-to choice for engineers seeking a dependable current-sense amplifier for their next project.
