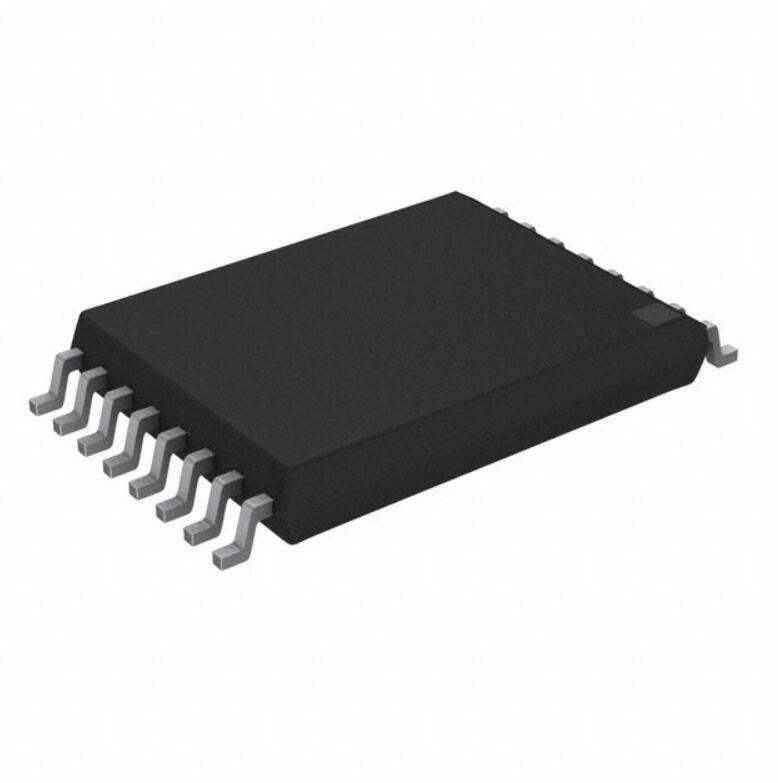

The ISO7842DWW is a state-of-the-art digital isolator designed and manufactured by Texas Instruments. This robust component is engineered to provide high electromagnetic immunity and low emissions at low power consumption while maintaining excellent signal integrity. It is an ideal choice for a wide range of applications, including industrial automation, motor control, medical equipment, and power supplies.

Key Features

• High Isolation Voltage: With an isolation voltage of 5.7 kVrms, the ISO7842DWW offers a high degree of protection for sensitive circuits, ensuring reliable operation in environments with high voltage transients.
• Quad-Channel Isolator: This device includes four isolation channels, providing flexibility in design and the ability to isolate multiple signals within one package.
• Low Power Consumption: The ISO7842DWW is optimized for efficiency, resulting in low power consumption without sacrificing performance, making it suitable for energy-sensitive applications.
• High Data Rates: Supporting data rates up to 100 Mbps, it ensures fast and accurate data communication, which is critical for modern high-speed digital systems.
• Robust Operation: Designed for harsh industrial environments, it operates reliably over a wide temperature range of -40°C to +125°C.
• Long Service Life: With a high reliability and long lifetime, the ISO7842DWW is built to last, reducing maintenance and replacement costs over time.

Applications

The versatility of the ISO7842DWW allows it to be used in a variety of applications, making it a valuable component in:

• Industrial automation systems
• Motor drive and control systems
• Renewable energy inverters
• Medical equipment with stringent safety requirements
• Isolated power supplies

With its combination of high isolation, low power consumption, and high data rate capabilities, the ISO7842DWW from Texas Instruments stands out as a top choice for designers looking to enhance the safety and reliability of their electronic systems.
